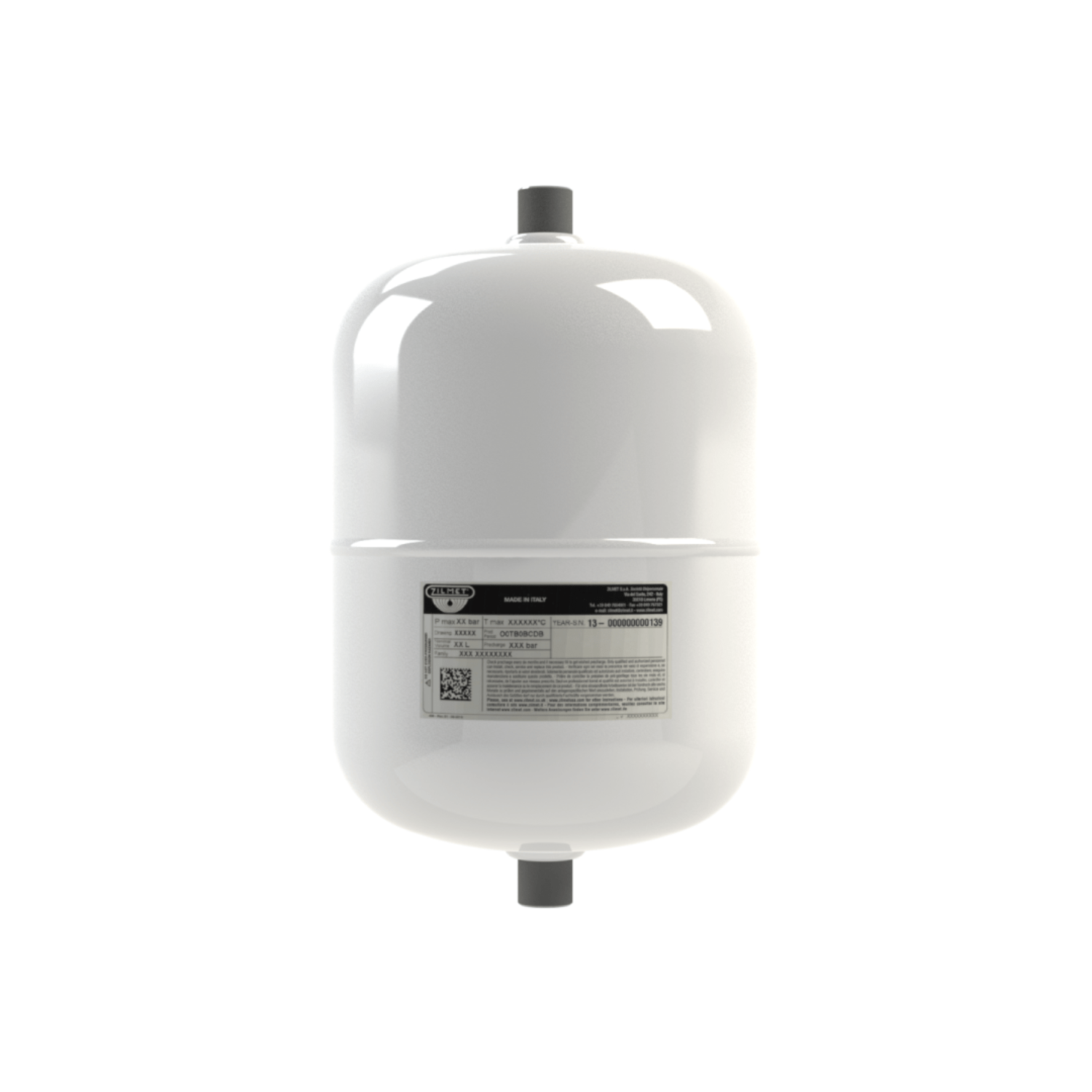

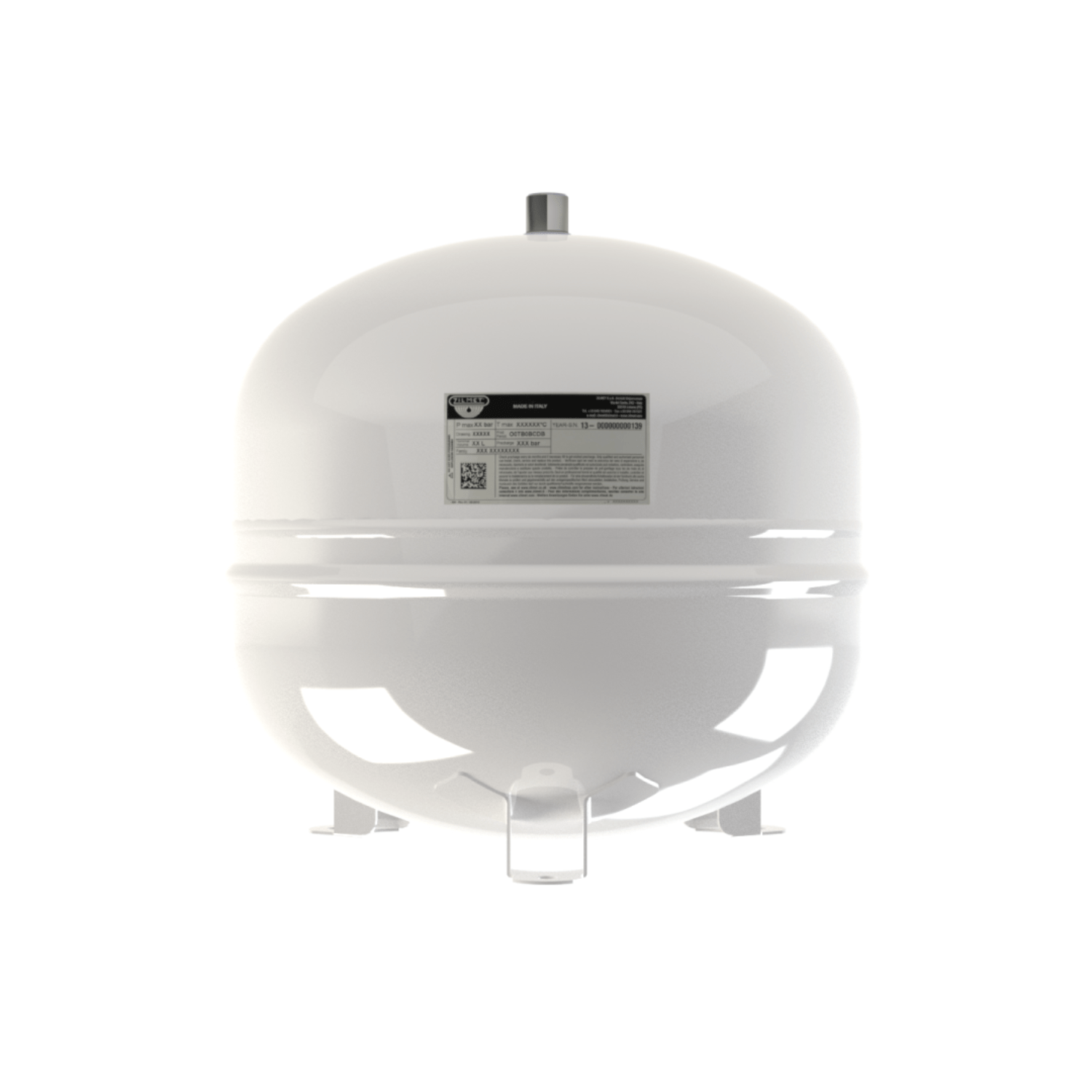

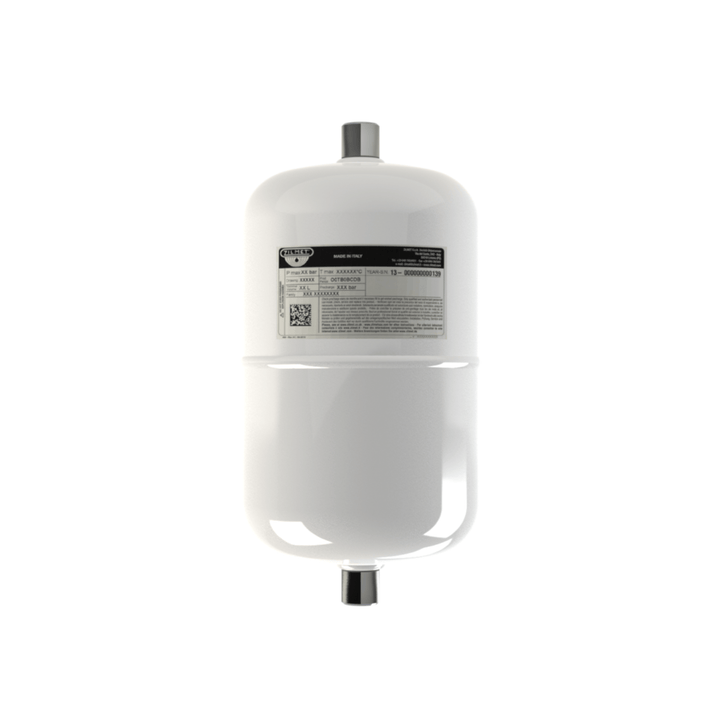

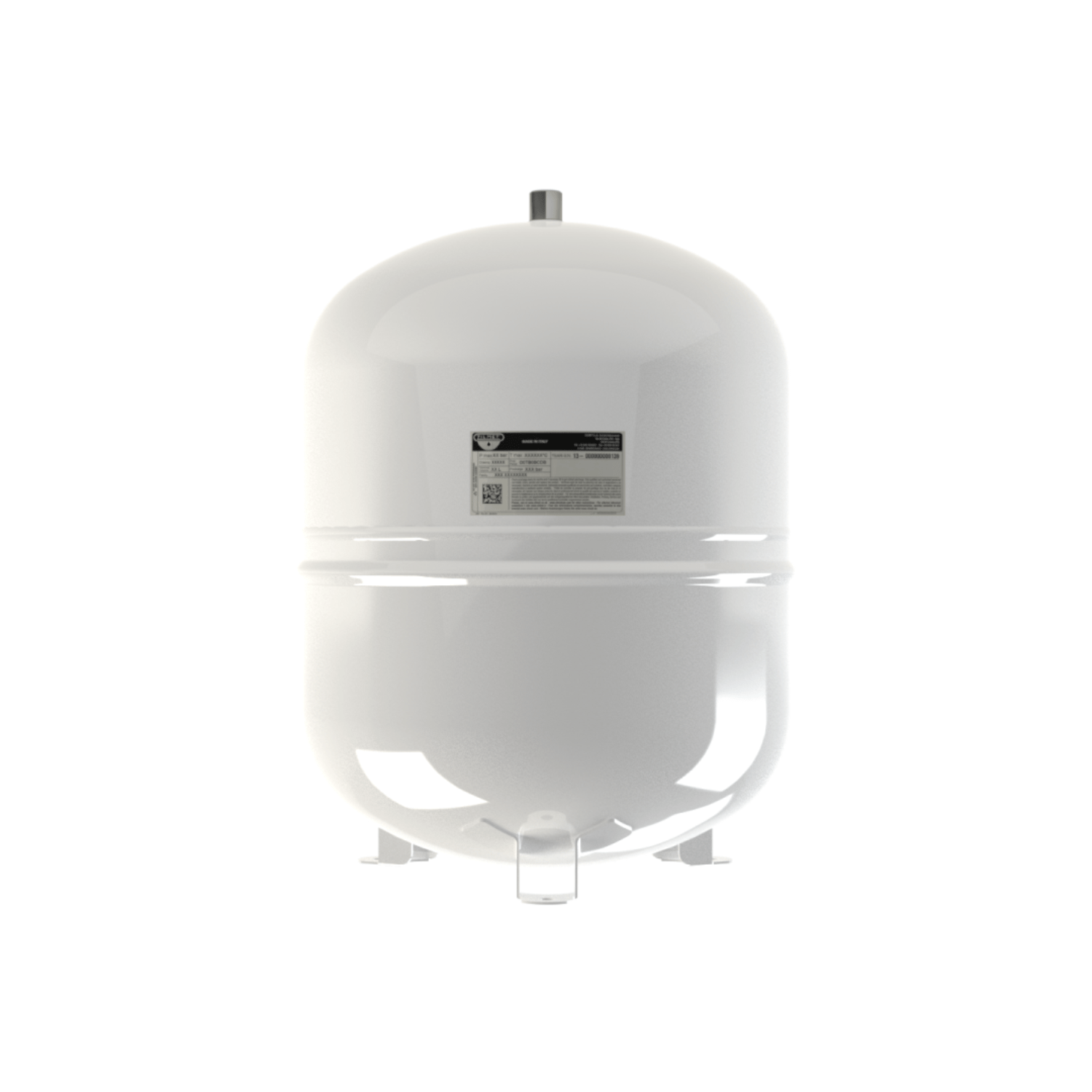

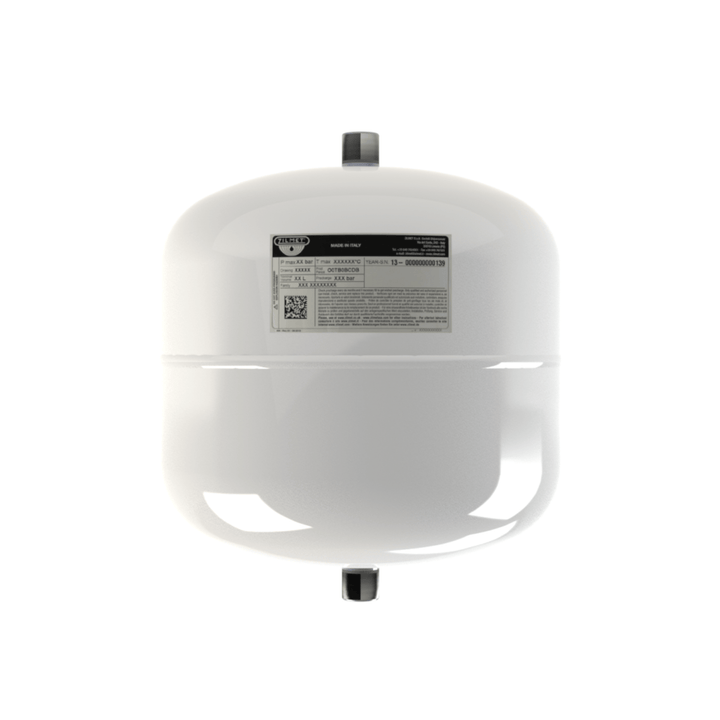

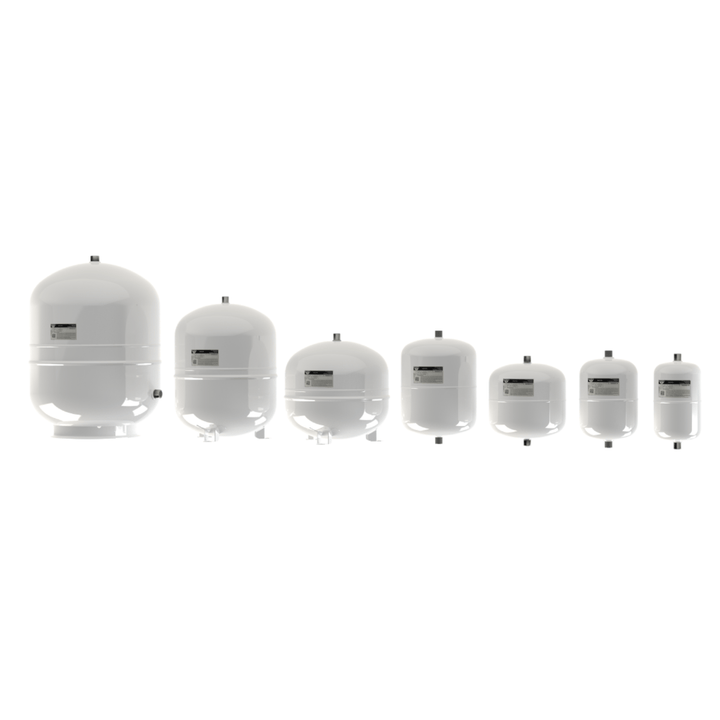

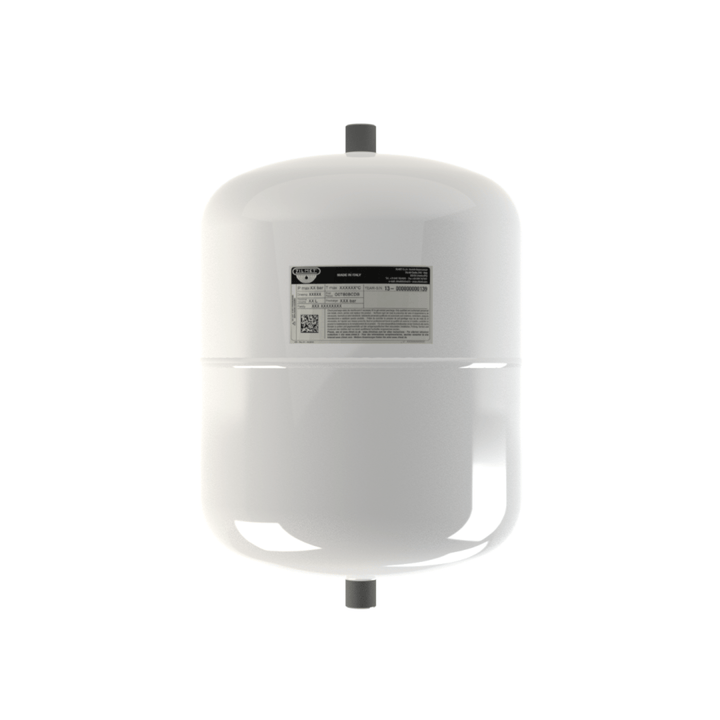

Zilmet 8 Litres White VSG vessel provides a method of heat dissipation above the expansion vessel, protecting the membrane from excessive temperatures. The correctly sized additional tank also allows a decrease in the temperature of the solar liquid in the expansion system. Made in Italy.It is worth remembering that this option is rarely used when the heating system is placed on the roof due to the fact that the piping runs are shorter than normal. From our own experience and from researching the different international regulations on solar energy, it's recommended that when the fluid volume between the collector and the expansion vessel is less than 50% of the wet side volume (between the extended diaphragm and the vessel inlet) the use of an additional tank is suggested.
Technical Specifications:
- Brand: Zilmet
- Part No: 11A0000837
- Product Type: VSG Vessel
- Capacity: 8 Litres
- Material: Carbon Steel
- Colour: White
- Maximum Operating Pressure: 10 bars
- Operating Temperature: -10/+120°C
- Connections: 3/4" BSP
- Manufacturer Warranty: 1 Year
Zilmet 12 Litres White VSG vessel provides a method of heat dissipation above the expansion vessel, protecting the membrane from excessive temperatures. The correctly sized additional tank also allows a decrease in the temperature of the solar liquid in the expansion system. Made in Italy.It is worth remembering that this option is rarely used when the heating system is placed on the roof due to the fact that the piping runs are shorter than normal. From our own experience and from researching the different international regulations on solar energy, it's recommended that when the fluid volume between the collector and the expansion vessel is less than 50% of the wet side volume (between the extended diaphragm and the vessel inlet) the use of an additional tank is suggested.
Technical Specifications:
- Brand: Zilmet
- Part No: 11A0001216
- Product Type: VSG Vessel
- Capacity: 12 Litres
- Material: Carbon Steel
- Colour: White
- Maximum Operating pressure: 10 bars
- Operating Temperature: -10/+120°C
- Connections: 3/4"BSP
- Manufacturer Warranty: 1 Year
Zilmet 18 Litres White VSG vessel provides a method of heat dissipation above the expansion vessel, protecting the membrane from excessive temperatures. The correctly sized additional tank also allows a decrease in the temperature of the solar liquid in the expansion system. Made in Italy.It is worth remembering that this option is rarely used when the heating system is placed on the roof due to the fact that the piping runs are shorter than normal. From our own experience and from researching the different international regulations on solar energy, it's recommended that when the fluid volume between the collector and the expansion vessel is less than 50% of the wet side volume (between the extended diaphragm and the vessel inlet) the use of an additional tank is suggested.
Technical Specifications:
- Brand: Zilmet
- Part No: 11A0001836
- Product Type: VSG Vessel
- Capacity: 18 Litres
- Capacity: 5 Litres
- Material: Carbon Steel
- Colour: White
- Maximum Operating pressure: 10 bars
- Operating Temperature: -10/+120°C
- Connections: 3/4"BSP
- Manufacturer Warranty: 1 Year
Zilmet 35 Litres White VSG vessel provides a method of heat dissipation above the expansion vessel, protecting the membrane from excessive temperatures. The correctly sized additional tank also allows a decrease in the temperature of the solar liquid in the expansion system. Made in Italy.It is worth remembering that this option is rarely used when the heating system is placed on the roof due to the fact that the piping runs are shorter than normal. From our own experience and from researching the different international regulations on solar energy, it's recommended that when the fluid volume between the collector and the expansion vessel is less than 50% of the wet side volume (between the extended diaphragm and the vessel inlet) the use of an additional tank is suggested.
Technical Specifications:
- Brand: Zilmet
- Part No: 11A0003510
- Product Type: VSG Vessel
- Capacity: 35 Litres
- Material: Carbon Steel
- Colour: White
- Maximum Operating pressure: 10 bars
- Operating Temperature: -10/+120°C
- Connections: 3/4"BSP
- Manufacturer Warranty: 1 Year
Zilmet 50 Litres White VSG vessel provides a method of heat dissipation above the expansion vessel, protecting the membrane from excessive temperatures. The correctly sized additional tank also allows a decrease in the temperature of the solar liquid in the expansion system. Made in Italy.It is worth remembering that this option is rarely used when the heating system is placed on the roof due to the fact that the piping runs are shorter than normal. From our own experience and from researching the different international regulations on solar energy, it's recommended that when the fluid volume between the collector and the expansion vessel is less than 50% of the wet side volume (between the extended diaphragm and the vessel inlet) the use of an additional tank is suggested.
Technical Specifications:
- Brand: Zilmet
- Part No: 11A0005022
- Product Type: VSG Vessel
- Capacity: 50 Litres
- Material: Carbon Steel
- Colour: White
- Maximum Operating pressure: 10 bars
- Operating Temperature: -10/+120°C
- Connections: 3/4"BSP
- Manufacturer Warranty: 1 Year
Zilmet 5-liter White VSG vessel provides a method of heat dissipation above the expansion vessel, protecting the membrane from excessive temperatures. The correctly sized additional tank also allows a decrease in the temperature of the solar liquid in the expansion system. Made in Italy. It is worth remembering that this option is rarely used when the heating system is placed on the roof due to the fact that the piping runs are shorter than normal. From our own experience and from researching the different international regulations on solar energy, it's recommended that when the fluid volume between the collector and the expansion vessel is less than 50% of the wet side volume (between the extended diaphragm and the vessel inlet), the use of an additional tank is suggested.
Technical Specifications:
- Brand: Zilmet
- Part No: 11A0000512
- Product Type: VSG Vessel
- Capacity: 5 Litres
- Material: Carbon Steel
- Colour: White
- Maximum Operating pressure: 10 bars
- Operating Temperature: -10/+120°C
- Connections: 3/4"BSP
- Manufacturer Warranty: 1 Year
