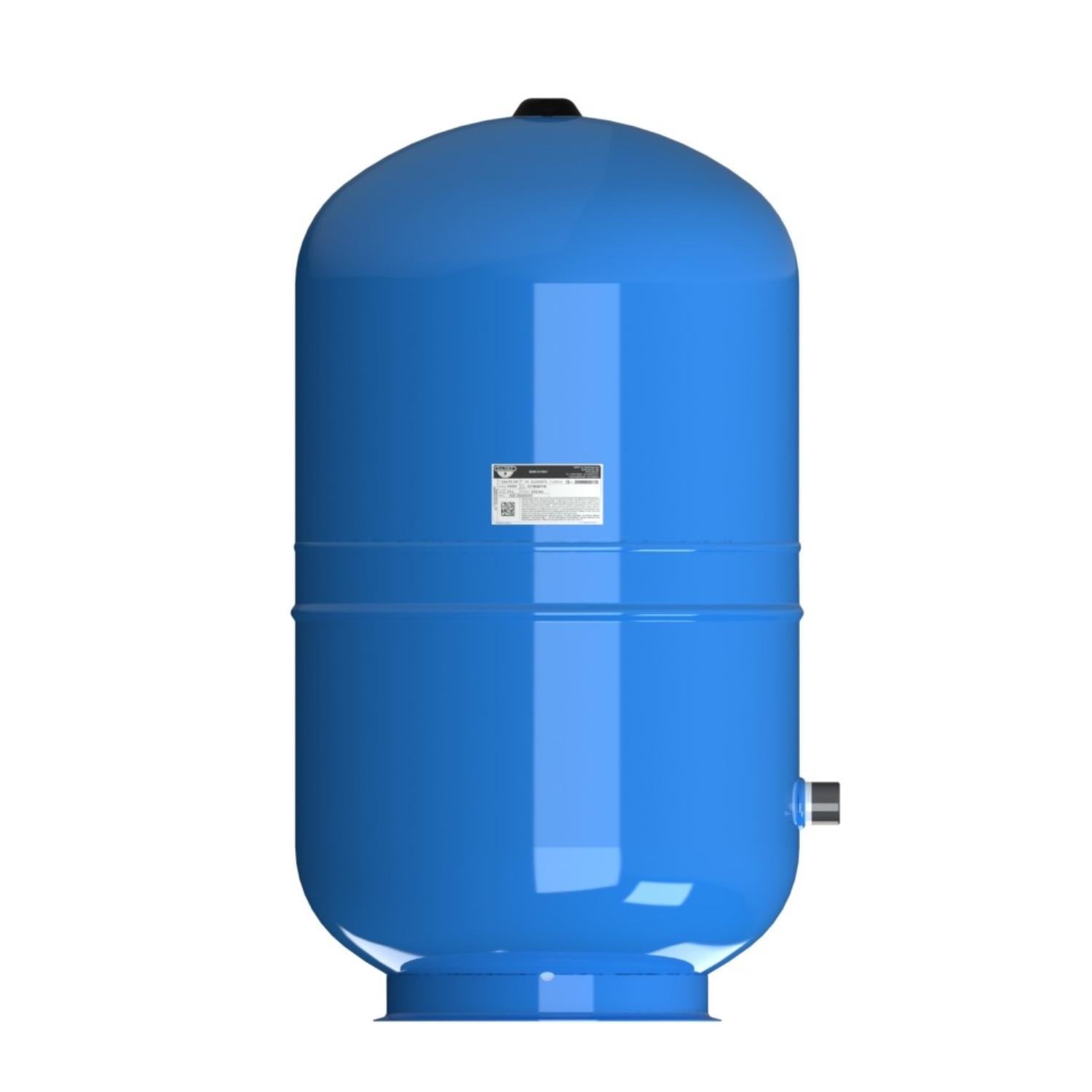

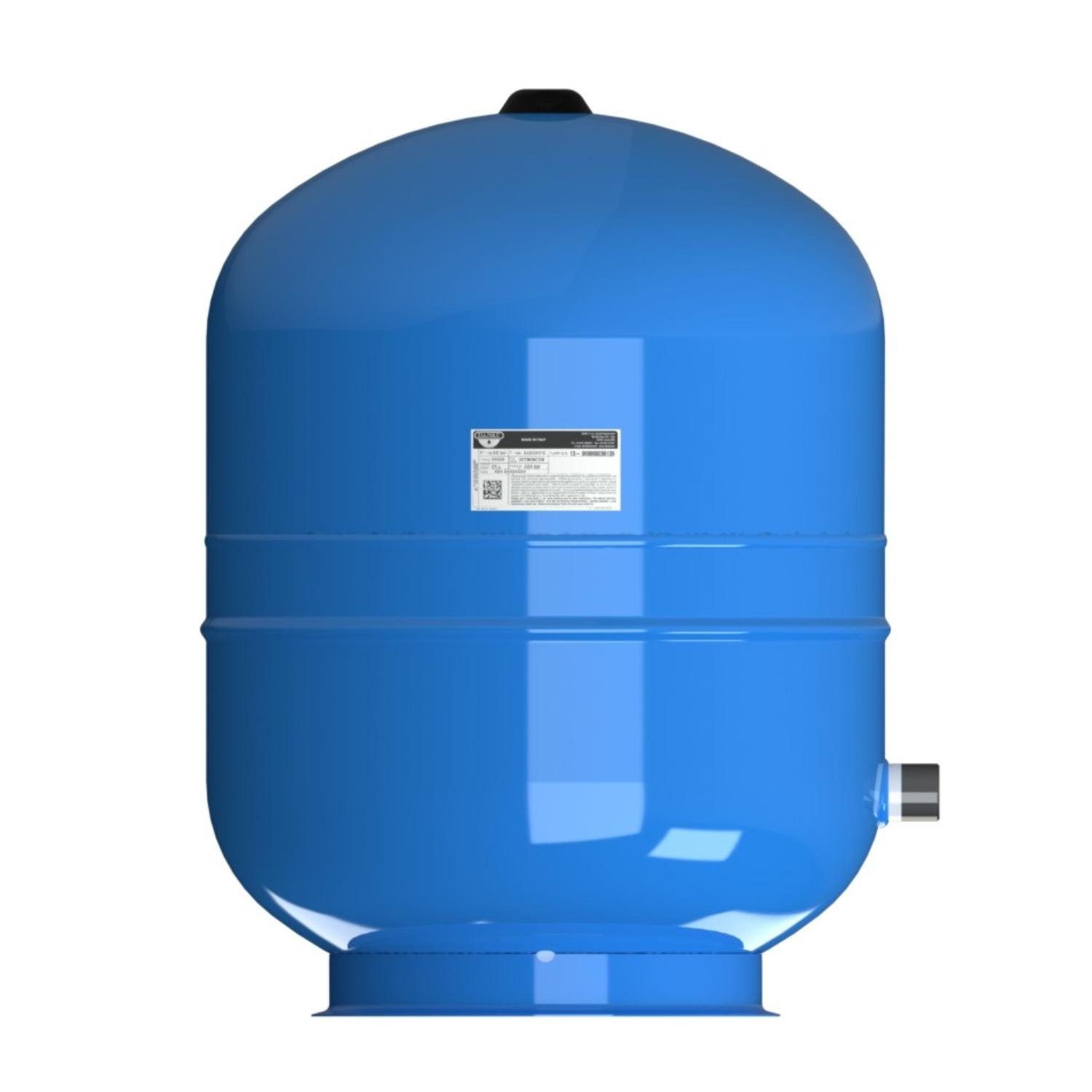

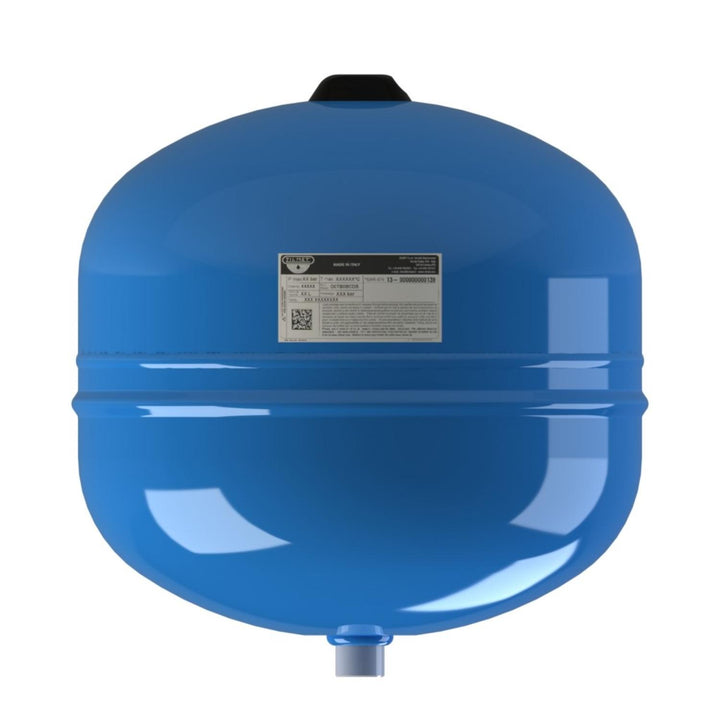

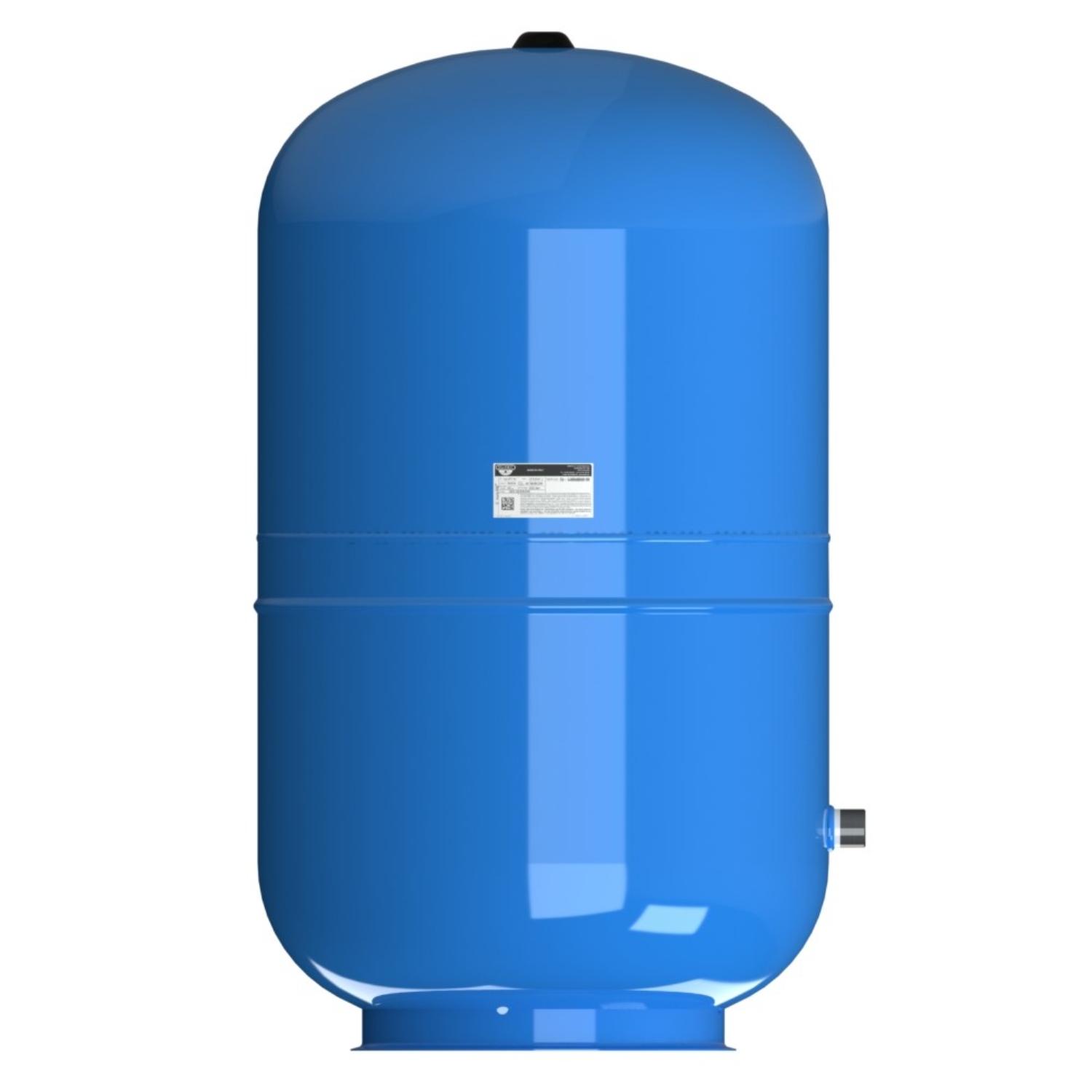

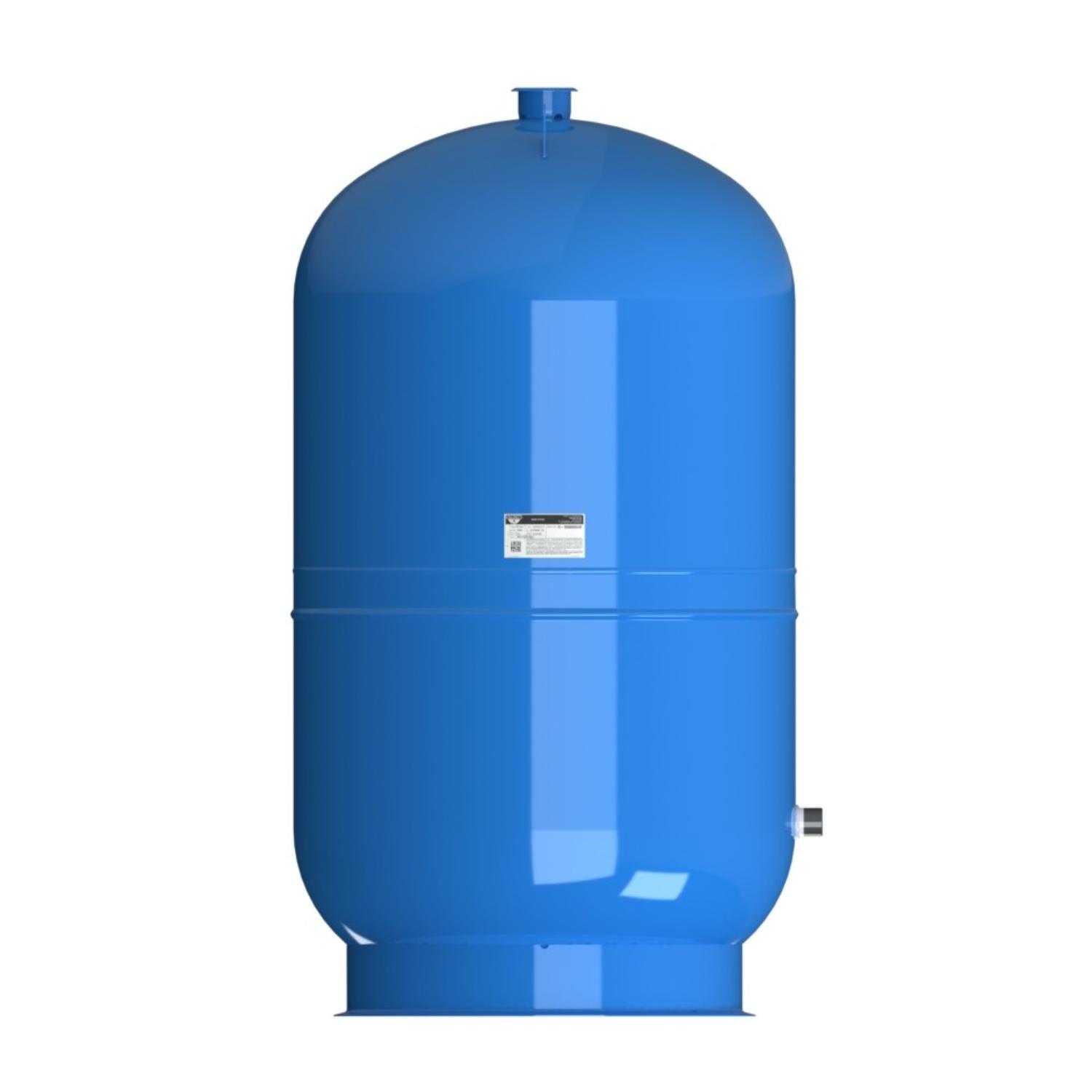

Zilmet Hydro Pro 35 Litres Blue Expansion Vessel offers a compact design with the seamless diaphragm, which doesn't stretch or crease. There are no bubbles or corners to trap sediment, which helps to inhibit bacterial growth; Hydro Pro has international approvals allowing its use with potable water. The Zilmet HYDRO-PRO tank leaves the factory already tested and pre-pressurized. Air and water do not mix, eliminating any possibility of “water logging” through loss of air to the system; no corrosion.
Technical Specifications:
- Brand: Zilmet
- Part No: 11A0003500
- Product Type: HYDRO-PRO Expansion Vessels
- Capacity: 35 Litres
- Material: Carbon Steel
- Colour: Blue
- Diameter: 380mm
- Height: 360mm
- Fitting: 1"G
- Max. Working Pressure: 10 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 3.5 bars
- Connections: 1/2"" BSP
- Manufacture Warranty : 1 Year
Zilmet Hydro Pro 50 Litres Blue Expansion Vessel offers a compact design with the seamless diaphragm, which doesn't stretch or crease. There are no bubbles or corners to trap sediment, which helps to inhibit bacterial growth; Hydro Pro has international approvals allowing its use with potable water. The Zilmet HYDRO-PRO tank leaves the factory already tested and pre-pressurized. Air and water do not mix, eliminating any possibility of “water logging” through loss of air to the system; no corrosion.
Technical Specifications:
- Brand: Zilmet
- Part No: 11A0005000
- Product Type: HYDRO-PRO Expansion Vessels
- Capacity: 50 Litres
- Material: Carbon Steel
- Colour: Blue
- Diameter: 380mm
- Height: 505mm
- Fitting: 1?G
- Max. Working Pressure: 10 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 3.5 bars
- Connections: 1/2"" BSP
- Manufacture Warranty : 1 Year
Zilmet Hydro Pro 80 Litres Blue Expansion Vessel offers a compact design with the seamless diaphragm, which doesn't stretch or crease. There are no bubbles or corners to trap sediment, which helps to inhibit bacterial growth; Hydro Pro has international approvals allowing its use with potable water. The Zilmet HYDRO-PRO tank leaves the factory already tested and pre-pressurized. Air and water do not mix, eliminating any possibility of “water logging” through loss of air to the system; no corrosion.
Technical Specifications:
- Brand: Zilmet
- Part No: 11A0008000
- Capacity: 80 Litres
- Material: Carbon Steel
- Colour: Blue
- Diameter: 450mm
- Height: 608mm
- Fitting: 1"G
- Max. Working Pressure: 10 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 3.5 bars
- Connections: 1/2"" BSP
- Manufacture Warranty : 1 Year
Zilmet Hydro Pro 105 Litres Blue Expansion Vessel offers a compact design with the seamless diaphragm, which doesn't stretch or crease. There are no bubbles or corners to trap sediment, which helps to inhibit bacterial growth; Hydro Pro has international approvals allowing its use with potable water. The Zilmet HYDRO-PRO tank leaves the factory already tested and pre-pressurized. Air and water do not mix, eliminating any possibility of “water logging” through loss of air to the system; no corrosion.
Technical Specifications:
- Brand: Zilmet
- Part No: 11A0010500
- Product Type: HYDRO-PRO Expansion Vessels
- Capacity: 105 Litres
- Shell: Carbon Steel
- Colour: Blue
- Diameter: 500mm
- Height: 665mm
- Fitting: 1 1/4""G
- Max. Working Pressure: 10 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 3.5 bars
- Connections: 1/2"""" BSP
- Manufacture Warranty : 1 Year
Zilmet Hydro Pro 150 Litres Blue Expansion Vessel offers a compact design with the seamless diaphragm, which doesn't stretch or crease. There are no bubbles or corners to trap sediment, which helps to inhibit bacterial growth; Hydro Pro has international approvals allowing its use with potable water. The Zilmet HYDRO-PRO tank leaves the factory already tested and pre-pressurized. Air and water do not mix, eliminating any possibility of “water logging” through loss of air to the system; no corrosion.
Technical Specifications:
- Brand: Zilmet
- Part No: 11A0015000
- Product Type: HYDRO-PRO Expansion Vessels
- Capacity: 150 Litres
- Material: Carbon Steel
- Colour: Blue
- Diameter: 500mm
- Height: 897mm
- Fitting: 1 1/4"G
- Max. Working Pressure: 10 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 3.5 bars
- Connections: 1/2"" BSP
- Manufacture Warranty : 1 Year
Zilmet Hydro Pro 200 Litres Blue Expansion Vessel offers a compact design with the seamless diaphragm, which doesn't stretch or crease. There are no bubbles or corners to trap sediment, which helps to inhibit bacterial growth; Hydro Pro has international approvals allowing its use with potable water. The Zilmet HYDRO-PRO tank leaves the factory already tested and pre-pressurized. Air and water do not mix, eliminating any possibility of “water logging” through loss of air to the system; no corrosion.
Technical Specifications:
- Brand: Zilmet
- Part No: 11A0020000
- Product Type: HYDRO-PRO Expansion Vessels
- Capacity: 200 Litres
- Material: Carbon Steel
- Colour: Blue
- Diameter: 600mm
- Height: 812mm
- Fitting: 1 1/4"G
- Max. Working Pressure: 10 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 3.5 bars
- Connections: 1/2"" BSP
- Manufacture Warranty : 1 Year
Zilmet Hydro Pro 250 Litres Blue Expansion Vessel offers a compact design with the seamless diaphragm, which doesn't stretch or crease. There are no bubbles or corners to trap sediment, which helps to inhibit bacterial growth; Hydro Pro has international approvals allowing its use with potable water. The Zilmet HYDRO-PRO tank leaves the factory already tested and pre-pressurized. Air and water do not mix, eliminating any possibility of “water logging” through loss of air to the system; no corrosion.
Technical Specifications:
- Brand: Zilmet
- Part No: 11A0025000
- Product Type: HYDRO-PRO Expansion Vessels
- Capacity: 250 Litres
- Material: Carbon Steel
- Colour: Blue
- Diameter: 630mm
- Height: 957mm
- Fitting: 1 1/4"G
- Max. Working Pressure: 10 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 3.5 bars
- Connections: 1/2"" BSP
- Manufacture Warranty : 1 Year
Zilmet Hydro Pro 300 Litres Blue Expansion Vessel offers a compact design with the seamless diaphragm, which doesn't stretch or crease. There are no bubbles or corners to trap sediment, which helps to inhibit bacterial growth; Hydro Pro has international approvals allowing its use with potable water. The Zilmet HYDRO-PRO tank leaves the factory already tested and pre-pressurized. Air and water do not mix, eliminating any possibility of “water logging” through loss of air to the system; no corrosion.
Technical Specifications:
- Brand: Zilmet
- Part No: 11A0030000
- Product Type: HYDRO-PRO Expansion Vessels
- Capacity: 300 Litres
- Material: Carbon Steel
- Colour: Blue
- Diameter: 630mm
- Height: 1105mm
- Fitting: 1 1/4"G
- Max. Working Pressure: 10 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 3.5 bars
- Connections: 1/2"" BSP
- Manufacture Warranty : 1 Year
Zilmet Hydro Pro 400 Litres Blue Expansion Vessel offers a compact design with the seamless diaphragm, which doesn't stretch or crease. There are no bubbles or corners to trap sediment, which helps to inhibit bacterial growth; Hydro Pro has international approvals allowing its use with potable water. The Zilmet HYDRO-PRO tank leaves the factory already tested and pre-pressurized. Air and water do not mix, eliminating any possibility of “water logging” through loss of air to the system; no corrosion.
Technical Specifications:
- Brand: Zilmet
- Part No: 11A0040000
- Product Type: HYDRO-PRO Expansion Vessels
- Capacity: 400 Litres
- Material: Carbon Steel
- Colour: Blue
- Diameter: 630mm
- Height: 1450mm
- Fitting: 1 1/4""G
- Max. Working Pressure: 10 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 3.5 bars
- Connections: 1/2"" BSP
- Manufacture Warranty : 1 Year
Zilmet Hydro Pro 500 Litres Blue Expansion Vessel offers a compact design with the seamless diaphragm, which doesn't stretch or crease. There are no bubbles or corners to trap sediment, which helps to inhibit bacterial growth; Hydro Pro has international approvals allowing its use with potable water. The Zilmet HYDRO-PRO tank leaves the factory already tested and pre-pressurized. Air and water do not mix, eliminating any possibility of “water logging” through loss of air to the system; no corrosion.
Technical Specifications:
- Brand: Zilmet
- Part No: 11A0050000
- Product Type: HYDRO-PRO Expansion Vessels
- Capacity: 500 Litres
- Material: Carbon Steel
- Colour: Blue
- Diameter: 750mm
- Height: 1340mm
- Fitting: 1 1/4""G
- Max. Working Pressure: 10 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 3.5 bars
- Connections: 1/2"" BSP
- Manufacture Warranty : 1 Year
Zilmet Hydro Pro 600 Litres Blue Expansion Vessel offers a compact design with the seamless diaphragm, which doesn't stretch or crease. There are no bubbles or corners to trap sediment, which helps to inhibit bacterial growth; Hydro Pro has international approvals allowing its use with potable water. The Zilmet HYDRO-PRO tank leaves the factory already tested and pre-pressurized. Air and water do not mix, eliminating any possibility of “water logging” through loss of air to the system; no corrosion.
Technical Specifications:
- Brand: Zilmet
- Part No: 11A0060000
- Product Type: HYDRO-PRO Expansion Vessels
- Capacity: 600 Litres
- Material: Carbon Steel
- Colour: Blue
- Diameter: 750mm
- Height: 1460mm
- Fitting: 1 1/4""G
- Max. Working Pressure: 10 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 3.5 bars
- Connections: 1/2"" BSP
- Manufacture Warranty : 1 Year
Zilmet Hydro Pro 2 Litres Blue Expansion Vessel offers a compact design with the seamless diaphragm, which doesn't stretch or crease. There are no bubbles or corners to trap sediment, which helps to inhibit bacterial growth; Hydro Pro has international approvals allowing its use with potable water. The Zilmet HYDRO-PRO tank leaves the factory already tested and pre-pressurized. Air and water do not mix, eliminating any possibility of “water logging” through loss of air to the system; no corrosion.
Technical Specifications:
- Brand: Zilmet
- Part No: 11A0000200
- Product Type: HYDRO-PRO Expansion Vessels
- Capacity: 2 Litres
- Material: Carbon Steel
- Colour: Blue
- Diameter: 142mm
- Height: 196mm
- Fitting: 3/2″G
- Max. Working Pressure: 10 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 3.5 bars
- Connections: 1/2"" BSP
- Manufacture Warranty : 1 Year
