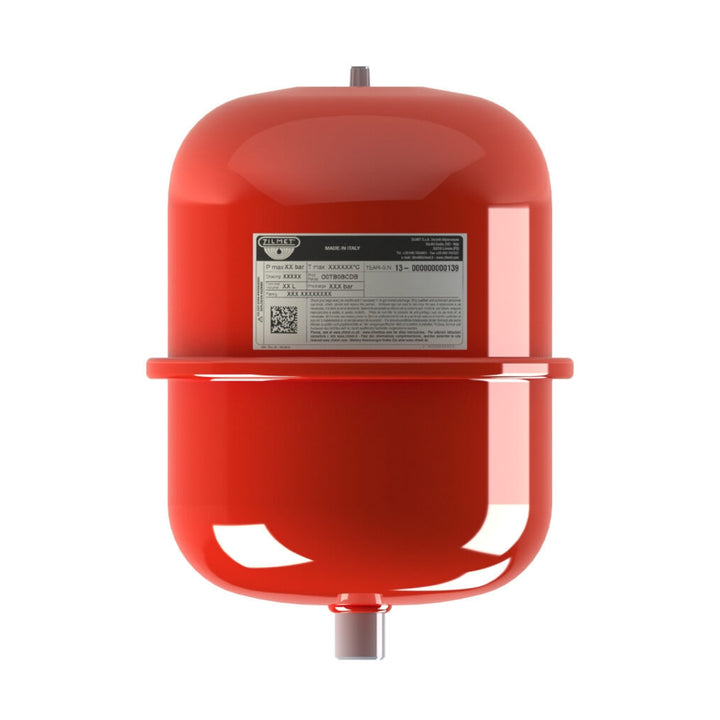

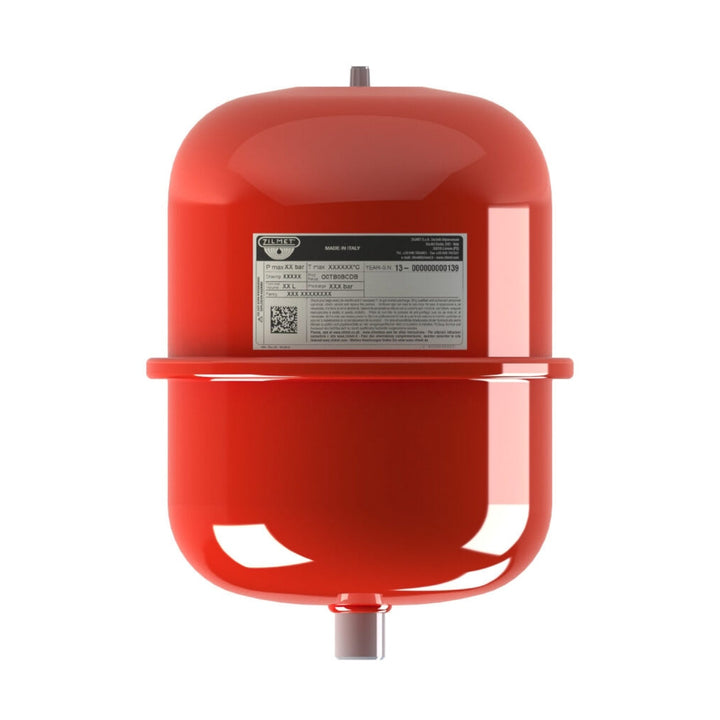

Zilmet Cal Pro expansion vessels absorb the water volume variations in closed heating systems, maintaining constant pressure and helping to reduce energy consumption. The broad range available meets the requirements of various heating system sizes.In a closed heating system, water cannot be compressed, and an increase in water volume due to the increase in its temperature is absorbed by the expansion vessel. When water is cold, the precharge pressure of the tank presses the diaphragm against the tank. As temperature increases, the expanded water volume pushes against the membrane, and water enters the tank, providing additional space to the system. With the temperature decreasing, the air cushion forces water back into the system. This permits the system to maintain the pressure, helping to reduce the energy consumption of the heating system.
Technical Specifications:
- Brand: Zilmet
- Part No: 1300000800B
- Product Type: Cal Pro expansion vessels
- Vessel Capacity: 8 Litres
- Material: Carbon Steel
- Colour: Red
- Diameter: 220mm
- Height: 295mm
- Fitting: ¾”G
- Max. Working Pressure: 5 bars
- Max. Operating Temperature: -10/+99°C
- Factory Pre-charge: 1.5 bars
- Manufacture Warranty : 1 Year

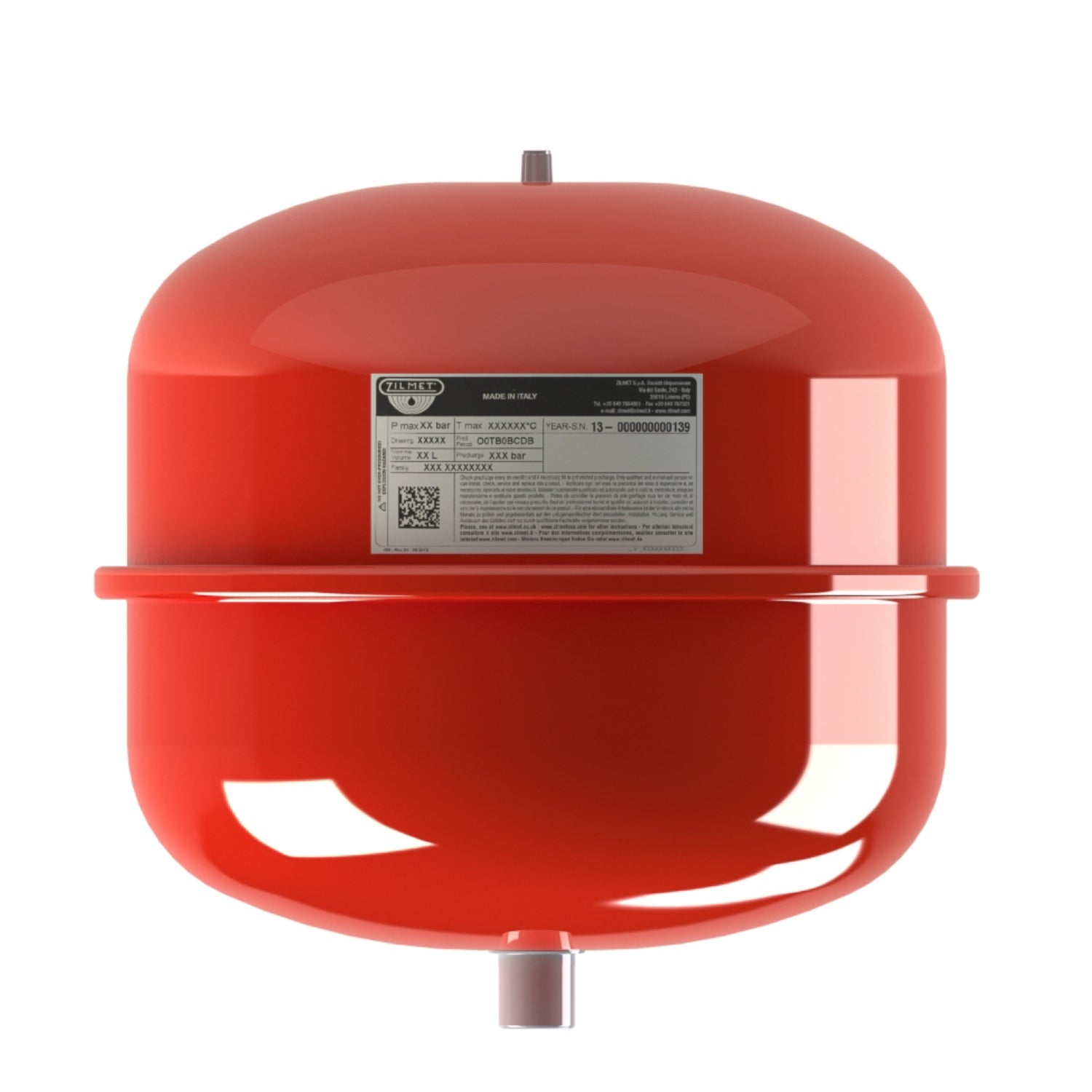

Zilmet Cal Pro expansion vessels absorb the water volume variations in closed heating systems, maintaining constant pressure and helping to reduce energy consumption. The broad range available meets the requirements of various heating system sizes.In a closed heating system, water cannot be compressed, and an increase in water volume due to the increase in its temperature is absorbed by the expansion vessel. When water is cold, the precharge pressure of the tank presses the diaphragm against the tank. As temperature increases, the expanded water volume pushes against the membrane, and water enters the tank, providing additional space to the system. With the temperature decreasing, the air cushion forces water back into the system. This permits the system to maintain the pressure, helping to reduce the energy consumption of the heating system.
Technical Specifications:
- Brand: Zilmet
- Part No: 1300001200B
- Product Type: Cal Pro expansion vessels
- Vessel Capacity: 12 Litres
- Material: Carbon Steel
- Colour: Red
- Diameter: 294mm
- Height: 281mm
- Fitting: ¾”G
- Max. Working Pressure: 5 bars
- Max. Operating Temperature: -10/+99°C
- Factory Pre-charge: 1.5 bars
- Manufacture Warranty : 1 Year

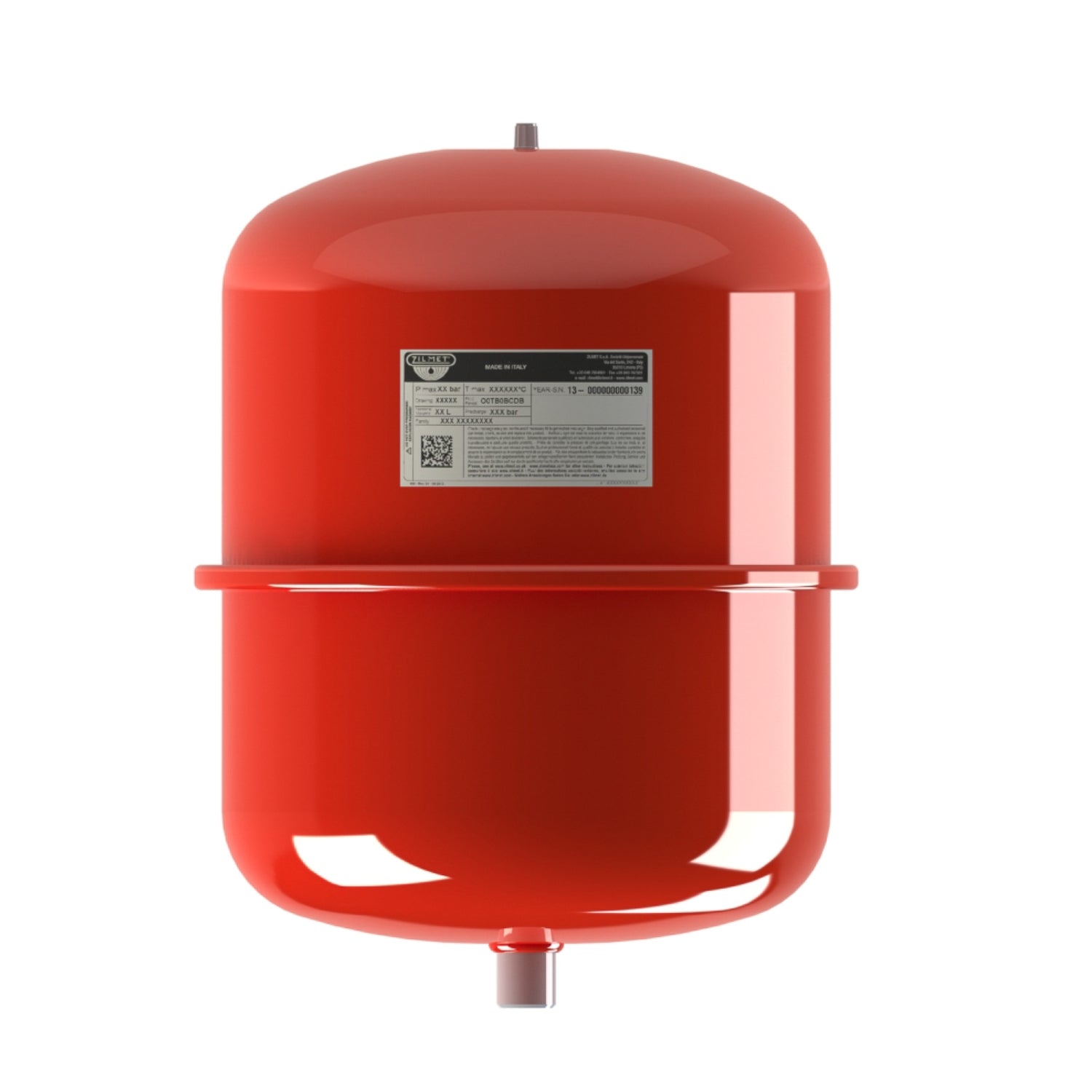

Zilmet Cal Pro expansion vessels absorb the water volume variations in closed heating systems, maintaining constant pressure and helping to reduce energy consumption. The broad range available meets the requirements of various heating system sizes.In a closed heating system, water cannot be compressed, and an increase in water volume due to the increase in its temperature is absorbed by the expansion vessel. When water is cold, the precharge pressure of the tank presses the diaphragm against the tank. As temperature increases, the expanded water volume pushes against the membrane, and water enters the tank, providing additional space to the system. With the temperature decreasing, the air cushion forces water back into the system. This permits the system to maintain the pressure, helping to reduce the energy consumption of the heating system.
Technical Specifications:
- Brand: Zilmet
- Part No: 1300001800B
- Product Type: Cal Pro expansion vessels
- Vessel Capacity: 18 Litres
- Material: Carbon Steel
- Colour: Red
- Diameter: 290mm
- Height: 375mm
- Fitting: ¾”G
- Max. Working Pressure: 5 bars
- Max. Operating Temperature: -10/+99°C
- Factory Pre-charge: 1.5 bars
- Manufacture Warranty : 1 Year

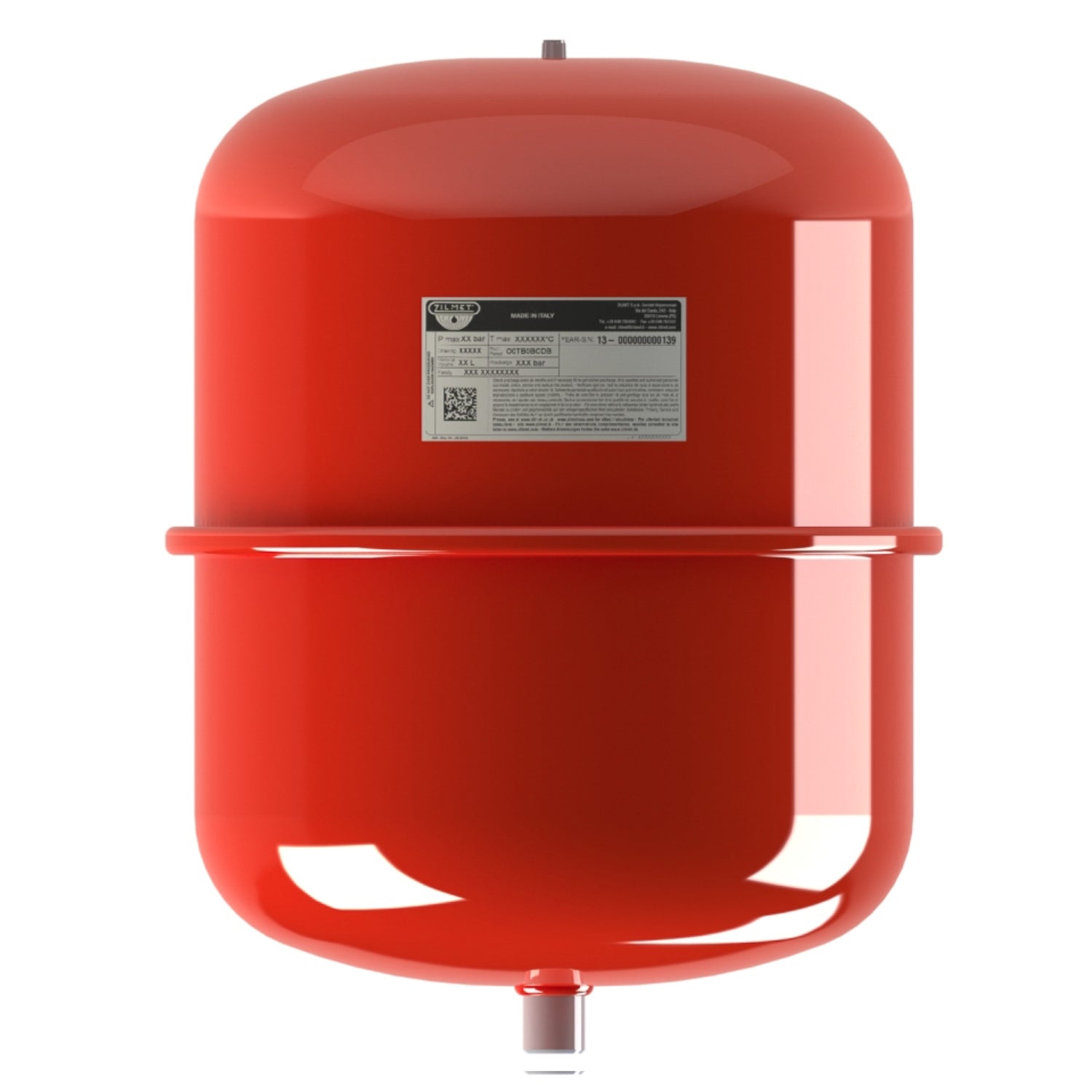

Zilmet Cal Pro expansion vessels absorb the water volume variations in closed heating systems, maintaining constant pressure and helping to reduce energy consumption. The broad range available meets the requirements of various heating system sizes.In a closed heating system, water cannot be compressed, and an increase in water volume due to the increase in its temperature is absorbed by the expansion vessel. When water is cold, the precharge pressure of the tank presses the diaphragm against the tank. As temperature increases, the expanded water volume pushes against the membrane, and water enters the tank, providing additional space to the system. With the temperature decreasing, the air cushion forces water back into the system. This permits the system to maintain the pressure, helping to reduce the energy consumption of the heating system.
Technical Specifications:
- Brand: Zilmet
- Part No: 1300002400B
- Product Type: Cal Pro expansion vessels
- Vessel Capacity: 25 Litres
- Material: Carbon Steel
- Colour: Red
- Diameter: 324mm
- Height: 415mm
- Fitting: ¾”G
- Max. Working Pressure: 5 bars
- Max. Operating Temperature: -10/+99°C
- Factory Pre-charge: 1.5 bars
- Manufacture Warranty : 1 Year

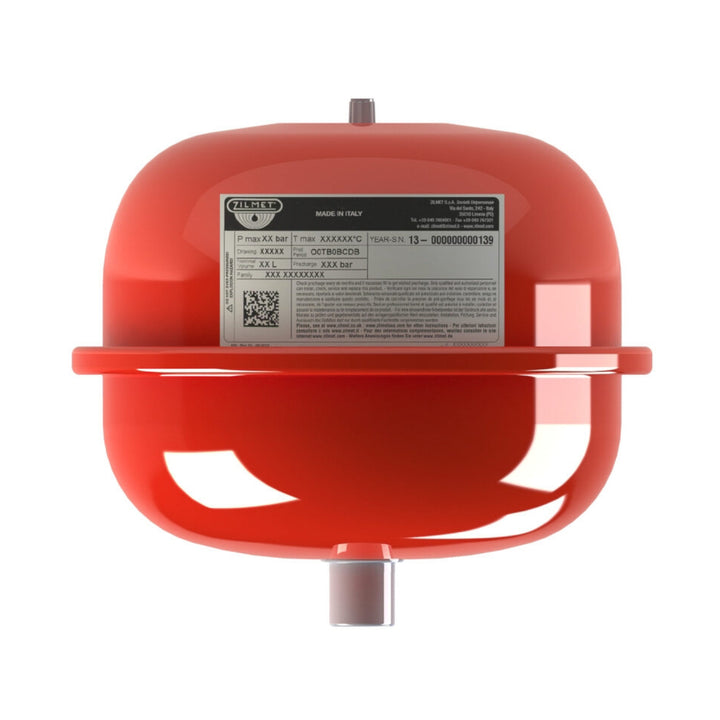

Zilmet Cal Pro expansion vessels absorb the water volume variations in closed heating systems, maintaining constant pressure and helping to reduce energy consumption. The broad range available meets the requirements of various heating system sizes.In a closed heating system, water cannot be compressed, and an increase in water volume due to the increase in its temperature is absorbed by the expansion vessel. When water is cold, the precharge pressure of the tank presses the diaphragm against the tank. As temperature increases, the expanded water volume pushes against the membrane, and water enters the tank, providing additional space to the system. With the temperature decreasing, the air cushion forces water back into the system. This permits the system to maintain the pressure, helping to reduce the energy consumption of the heating system.
Technical Specifications:
- Brand: Zilmet
- Part No: 1300000400B
- Product Type: Cal Pro expansion vessels
- Vessel Capacity: 4 Litres
- Material: Carbon Steel
- Colour: Red
- Diameter: 225mm
- Height: 195mm
- Fitting: ¾”G
- Max. Working Pressure: 5 bars
- Max. Operating Temperature: -10/+99°C
- Factory Pre-charge: 1.5 bars
- Manufacture Warranty : 1 Year
