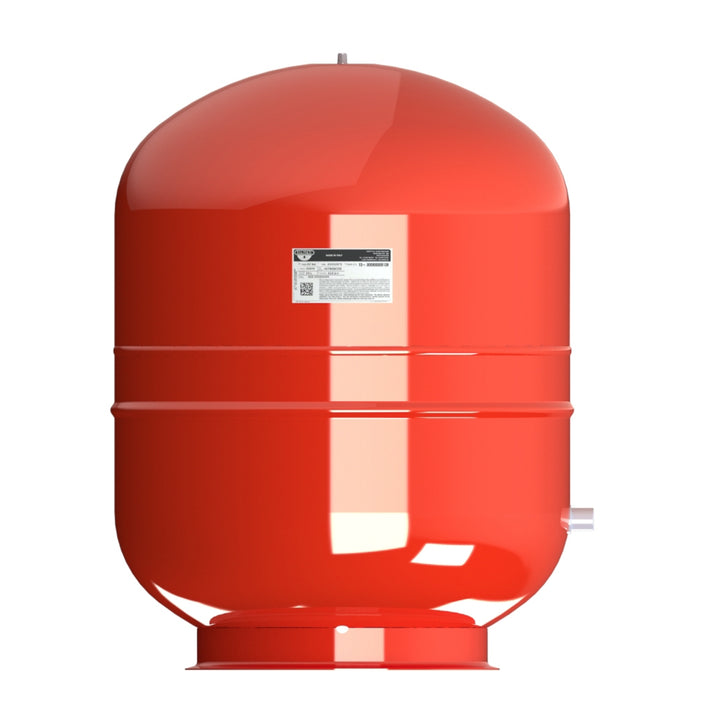

Zilmet Cal Pro expansion vessels 105 liters absorb the water volume variances in closed heating systems, maintaining constant pressure and helping to decrease energy consumption. The broad range available meets the requirements of various heating system sizes. In a closed heating system, water cannot be compressed, and an increase in water volume due to the increase in its temperature is absorbed by the expansion vessel. When water is cold, the precharge pressure of the tank presses the diaphragm against the tank. As temperature increases, the expanded water volume pushes against the membrane, and water enters the tank, providing additional space to the system. With the temperature decreasing, the air cushion forces water back into the system. This permits the system to maintain the pressure, helping to reduce the energy consumption of the heating system.
Technical Specifications:
- Brand: Zilmet
- Part No: 1300010500
- Product Type: Cal Pro expansion vessels
- Capacity: 105 Litres
- Diameter: 500mm
- Height: 665mm
- Colour: Red
- Material: Carbon Steel
- Max. Working Pressure: 6 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 2.0 bars
- Manufacturer Guarantee: 1 Year
Zilmet Cal Pro expansion vessels 150 liters absorb the water volume variances in closed heating systems, maintaining constant pressure and helping to decrease energy consumption. The broad range available meets the requirements of various heating system sizes. In a closed heating system, water cannot be compressed, and an increase in water volume due to the increase in its temperature is absorbed by the expansion vessel. When water is cold, the precharge pressure of the tank presses the diaphragm against the tank. As temperature increases, the expanded water volume pushes against the membrane, and water enters the tank, providing additional space to the system. With the temperature decreasing, the air cushion forces water back into the system. This permits the system to maintain the pressure, helping to reduce the energy consumption of the heating system.
Technical Specifications:
- Brand: Zilmet
- Part No: 1300015000
- Product Type: Cal Pro expansion vessels
- Capacity: 150 Litres
- Diameter: 500mm
- Height: 897mm
- Colour: Red
- Material: Carbon Steel
- Max. Working Pressure: 6 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 2.0 bars
- Manufacturer Guarantee: 1 Year
Zilmet Cal Pro expansion vessels 200 liters absorb the water volume variances in closed heating systems, maintaining constant pressure and helping to decrease energy consumption. The broad range available meets the requirements of various heating system sizes. In a closed heating system, water cannot be compressed, and an increase in water volume due to the increase in its temperature is absorbed by the expansion vessel. When water is cold, the precharge pressure of the tank presses the diaphragm against the tank. As temperature increases, the expanded water volume pushes against the membrane, and water enters the tank, providing additional space to the system. With the temperature decreasing, the air cushion forces water back into the system. This permits the system to maintain the pressure, helping to reduce the energy consumption of the heating system.
Technical Specifications:
- Brand: Zilmet
- Part No: 1300020000
- Product Type: Cal Pro expansion vessels
- Capacity: 200 Litres
- Diameter: 600mm
- Height: 812mm
- Colour: Red
- Material: Carbon Steel
- Max. Working Pressure: 6 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 2.0 bars
- Manufacturer Guarantee: 1 Year
Zilmet Cal Pro expansion vessels 250 liters absorb the water volume variances in closed heating systems, maintaining constant pressure and helping to decrease energy consumption. The broad range available meets the requirements of various heating system sizes. In a closed heating system, water cannot be compressed, and an increase in water volume due to the increase in its temperature is absorbed by the expansion vessel. When water is cold, the precharge pressure of the tank presses the diaphragm against the tank. As temperature increases, the expanded water volume pushes against the membrane, and water enters the tank, providing additional space to the system. With the temperature decreasing, the air cushion forces water back into the system. This permits the system to maintain the pressure, helping to reduce the energy consumption of the heating system.
Technical Specifications:
- Brand: Zilmet
- Part No: 1300025000
- Product Type: Cal Pro expansion vessels
- Capacity: 250 Litres
- Diameter: 630mm
- Height: 957mm
- Colour: Red
- Material: Carbon Steel
- Max. Working Pressure: 6 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 2.0 bars
- Manufacturer Guarantee: 1 Year
Zilmet Cal Pro expansion vessels 300 liters absorb the water volume variances in closed heating systems, maintaining constant pressure and helping to decrease energy consumption. The broad range available meets the requirements of various heating system sizes. In a closed heating system, water cannot be compressed, and an increase in water volume due to the increase in its temperature is absorbed by the expansion vessel. When water is cold, the precharge pressure of the tank presses the diaphragm against the tank. As temperature increases, the expanded water volume pushes against the membrane, and water enters the tank, providing additional space to the system. With the temperature decreasing, the air cushion forces water back into the system. This permits the system to maintain the pressure, helping to reduce the energy consumption of the heating system.
Technical Specifications:
- Brand: Zilmet
- Part No: 1300030000
- Product Type: Cal Pro expansion vessels
- Capacity: 300 Litres
- Diameter: 630mm
- Height: 1105mm
- Colour: Red
- Material: Carbon Steel
- Max. Working Pressure: 6 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 2.0 bars
- Manufacturer Guarantee: 1 Year
Zilmet Cal Pro expansion vessels 400 liters absorb the water volume variances in closed heating systems, maintaining constant pressure and helping to decrease energy consumption. The broad range available meets the requirements of various heating system sizes. In a closed heating system, water cannot be compressed, and an increase in water volume due to the increase in its temperature is absorbed by the expansion vessel. When water is cold, the precharge pressure of the tank presses the diaphragm against the tank. As temperature increases, the expanded water volume pushes against the membrane, and water enters the tank, providing additional space to the system. With the temperature decreasing, the air cushion forces water back into the system. This permits the system to maintain the pressure, helping to reduce the energy consumption of the heating system.
Technical Specifications:
- Brand: Zilmet
- Part No: 1300040000
- Product Type: Cal Pro expansion vessels
- Capacity: 400 Litres
- Diameter: 630mm
- Height: 1450mm
- Colour: Red
- Material: Carbon Steel
- Max. Working Pressure: 6 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 2.0 bars
- Manufacturer Guarantee: 1 Year

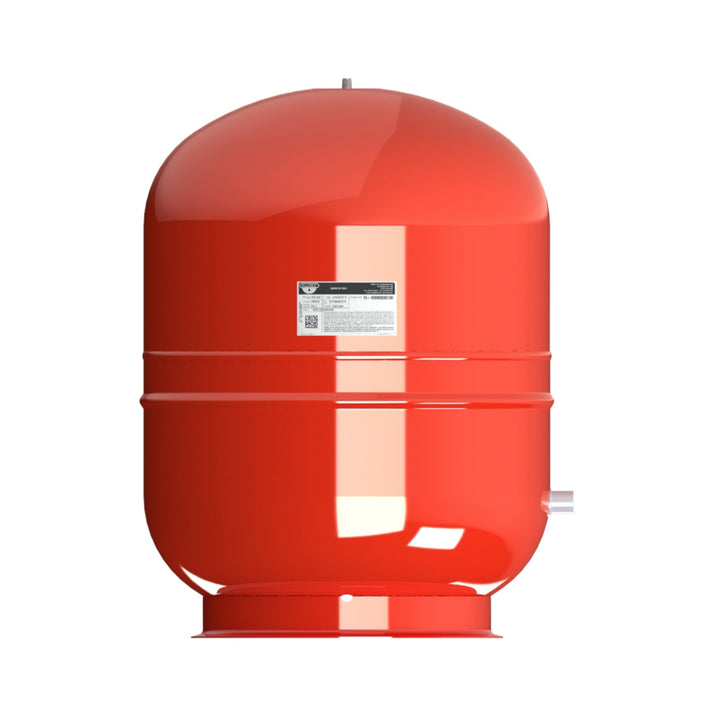

Zilmet Cal Pro expansion vessels 80 liters absorb the water volume variances in closed heating systems, maintaining constant pressure and helping to decrease energy consumption. The broad range available meets the requirements of various heating system sizes. In a closed heating system, water cannot be compressed, and an increase in water volume due to the increase in its temperature is absorbed by the expansion vessel. When water is cold, the precharge pressure of the tank presses the diaphragm against the tank. As temperature increases, the expanded water volume pushes against the membrane, and water enters the tank, providing additional space to the system. With the temperature decreasing, the air cushion forces water back into the system. This permits the system to maintain the pressure, helping to reduce the energy consumption of the heating system.
Technical Specifications:
- Brand: Zilmet
- Part No: 1300008000
- Product Type: Cal Pro expansion vessels
- Capacity: 80 Litres
- Diameter: 450 mm
- Height: 608 mm
- Colour: Red
- Material: Carbon Steel
- Max. Working Pressure: 6 bar
- Max. Operating Temperature: -10/+99°C
- Factory Pre-Charge: 2.0 bars
- Manufacturer Guarantee: 1 Year
