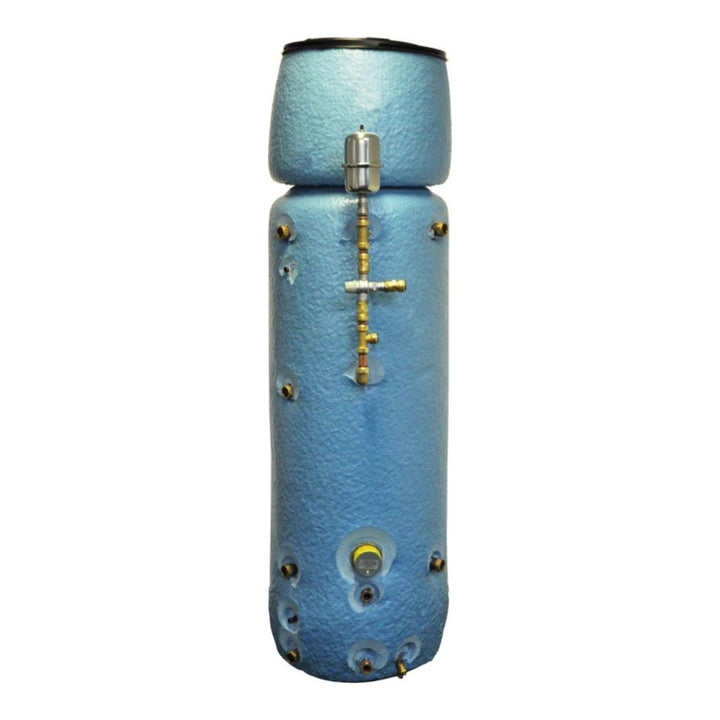

Telford Tristar Thermal Store Direct Open-Vented Combination Cylinders Copper Blue is designed for installations where electricity is the only heat source available. All stores come with a blend valve/shock arrestor factory fitted and two 3kw immersion heaters. This thermal store has been designed for fitting in situations where the running of an overflow or discharge pipe would be difficult or impractical, for example, flats/apartments. The filling of the unit is achieved by an integral filling loop which is disconnected from the mains water when the correct water level is attained. This cylinder is a magical thing that beautifies your place to another level.
Key Features:
- Available in stainless steel or copper
- Direct, indirect or twin coil options
- Supplies mains pressure hot water & high flow rates
- Up to 3 bar max pressure / 15 liters per minute domestic flow rate
- Top-up stored water annually
- No pump or overflow pipes required
- Integral parts are easily accessed
- Steel casing with white ï¬nish
- 2 x factory-tested 3kW immersion heaters
- Fully pre-plumbed ready to install
- Fully insulated to minimize any heat loss
- Domestic hot blended set to 47°C
- 22mm non-scaling ribbed heat exchanger coil
- Over-fill sensor & domestic safety shut-off valve
- No external F&E tank needed
- Exempt from G3 of the Building Regulations
- 5 Year Warranty* if the cylinder is registered and serviced annually
Technical Specifications:
- Brand: Telford
- Product Code: TSC135/5011
- Cylinder Type: Combination / Vented
- Cylinder height: 1200mm
- Cylinder Diameter: 450mm
- Capacity: 135 litre
- Immersion Heater Rating: 3 Kw
- Orientation: Vertical
- Material: Copper
- Colour: Blue
Telford Tristar Thermal Store Direct Open-Vented Combination Cylinders Copper Blue is designed for installations where electricity is the only heat source available. All stores come with a blend valve/shock arrestor factory fitted and two 3kw immersion heaters. This thermal store has been designed for fitting in situations where the running of an overflow or discharge pipe would be difficult or impractical, for example, flats/apartments. The filling of the unit is achieved by an integral filling loop which is disconnected from the mains water when the correct water level is attained. This cylinder is a magical thing that beautifies your place to another level.
Key Features:
- Available in stainless steel or copper
- Direct, indirect or twin coil options
- Supplies mains pressure hot water & high flow rates
- Up to 3 bar max pressure / 15 liters per minute domestic flow rate
- Top-up stored water annually
- No pump or overflow pipes required
- Integral parts are easily accessed
- Steel casing with white ï¬nish
- 2 x factory-tested 3kW immersion heaters
- Fully pre-plumbed ready to install
- Fully insulated to minimize any heat loss
- Domestic hot blended set to 47°C
- 22mm non-scaling ribbed heat exchanger coil
- Over-fill sensor & domestic safety shut-off valve
- No external F&E tank needed
- Exempt from G3 of the Building Regulations
- 5 Year Warranty* if the cylinder is registered and serviced annually
Technical Specifications:
- Brand: Telford
- Product Code: TSC144/5012
- Cylinder Type: Combination / Vented
- Cylinder height: 1200mm
- Cylinder Diameter: 450mm
- Capacity: 144 litre
- Immersion Heater Rating: 3 Kw
- Orientation: Vertical
- Material: Copper
- Colour: Blue
Telford Tristar Thermal Store Direct Open-Vented Combination Cylinders Copper Blue is designed for installations where electricity is the only heat source available. All stores come with a blend valve/shock arrestor factory fitted and two 3kw immersion heaters. This thermal store has been designed for fitting in situations where the running of an overflow or discharge pipe would be difficult or impractical, for example, flats/apartments. The filling of the unit is achieved by an integral filling loop which is disconnected from the mains water when the correct water level is attained. This cylinder is a magical thing that beautifies your place to another level.
Key Features:
- Available in stainless steel or copper
- Direct, indirect or twin coil options
- Supplies mains pressure hot water & high flow rates
- Up to 3 bar max pressure / 15 liters per minute domestic flow rate
- Top-up stored water annually
- No pump or overflow pipes required
- Integral parts are easily accessed
- Steel casing with white ï¬nish
- 2 x factory-tested 3kW immersion heaters
- Fully pre-plumbed ready to install
- Fully insulated to minimize any heat loss
- Domestic hot blended set to 47°C
- 22mm non-scaling ribbed heat exchanger coil
- Over-fill sensor & domestic safety shut-off valve
- No external F&E tank needed
- Exempt from G3 of the Building Regulations
- 5 Year Warranty* if the cylinder is registered and serviced annually
Technical Specifications:
- Brand: Telford
- Product Code: TSC160/5013
- Cylinder Type: Combination / Vented
- Cylinder height: 1550mm
- Cylinder Diameter: 450mm
- Capacity: 160 litre
- Immersion Heater Rating: 3 Kw
- Orientation: Vertical
- Material: Copper
- Colour: Blue
Telford Tristar Thermal Store Direct Open-Vented Combination Cylinders Copper Blue is designed for installations where electricity is the only heat source available. All stores come with a blend valve/shock arrestor factory fitted and two 3kw immersion heaters. This thermal store has been designed for fitting in situations where the running of an overflow or discharge pipe would be difficult or impractical, for example, flats/apartments. The filling of the unit is achieved by an integral filling loop which is disconnected from the mains water when the correct water level is attained. This cylinder is a magical thing that beautifies your place to another level.
Key Features:
- Available in stainless steel or copper
- Direct, indirect or twin coil options
- Supplies mains pressure hot water & high flow rates
- Up to 3 bar max pressure / 15 liters per minute domestic flow rate
- Top-up stored water annually
- No pump or overflow pipes required
- Integral parts are easily accessed
- Steel casing with white ï¬nish
- 2 x factory-tested 3kW immersion heaters
- Fully pre-plumbed ready to install
- Fully insulated to minimize any heat loss
- Domestic hot blended set to 47°C
- 22mm non-scaling ribbed heat exchanger coil
- Over-fill sensor & domestic safety shut-off valve
- No external F&E tank needed
- Exempt from G3 of the Building Regulations
- 5 Year Warranty* if the cylinder is registered and serviced annually
Technical Specifications:
- Brand: Telford
- Product Code: TSC200/5014
- Cylinder Type: Combination / Vented
- Cylinder height: 1850mm
- Cylinder Diameter: 450mm
- Capacity: 200 litre
- Immersion Heater Rating: 3 Kw
- Orientation: Vertical
- Material: Copper
- Colour: Blue
Telford Tristar Thermal Store Direct Open-Vented Combination Cylinders Copper Blue is designed for installations where electricity is the only heat source available. All stores come with a blend valve/shock arrestor factory fitted and two 3kw immersion heaters. This thermal store has been designed for fitting in situations where the running of an overflow or discharge pipe would be difficult or impractical, for example, flats/apartments. The filling of the unit is achieved by an integral filling loop which is disconnected from the mains water when the correct water level is attained. This cylinder is a magical thing that beautifies your place to another level.
Key Features:
- Available in stainless steel or copper
- Direct, indirect or twin coil options
- Supplies mains pressure hot water & high flow rates
- Up to 3 bar max pressure / 15 liters per minute domestic flow rate
- Top-up stored water annually
- No pump or overflow pipes required
- Integral parts are easily accessed
- Steel casing with white ï¬nish
- 2 x factory-tested 3kW immersion heaters
- Fully pre-plumbed ready to install
- Fully insulated to minimize any heat loss
- Domestic hot blended set to 47°C
- 22mm non-scaling ribbed heat exchanger coil
- Over-fill sensor & domestic safety shut-off valve
- No external F&E tank needed
- Exempt from G3 of the Building Regulations
- 5 Year Warranty* if the cylinder is registered and serviced annually
Technical Specifications:
- Brand: Telford
- Product Code: TSC250/5015
- Cylinder Type: Combination / Vented
- Cylinder height: 1800mm
- Cylinder Diameter: 500mm
- Capacity: 250 litre
- Immersion Heater Rating: 3 Kw
- Orientation: Vertical
- Material: Copper
- Colour: Blue
Telford Tristar Thermal Store Direct Open-Vented Combination Cylinders Copper Blue is designed for installations where electricity is the only heat source available. All stores come with a blend valve/shock arrestor factory fitted and two 3kw immersion heaters. This thermal store has been designed for fitting in situations where the running of an overflow or discharge pipe would be difficult or impractical, for example, flats/apartments. The filling of the unit is achieved by an integral filling loop which is disconnected from the mains water when the correct water level is attained. This cylinder is a magical thing that beautifies your place to another level.
Key Features:
- Available in stainless steel or copper
- Direct, indirect or twin coil options
- Supplies mains pressure hot water & high flow rates
- Up to 3 bar max pressure / 15 liters per minute domestic flow rate
- Top-up stored water annually
- No pump or overflow pipes required
- Integral parts are easily accessed
- Steel casing with white ï¬nish
- 2 x factory-tested 3kW immersion heaters
- Fully pre-plumbed ready to install
- Fully insulated to minimize any heat loss
- Domestic hot blended set to 47°C
- 22mm non-scaling ribbed heat exchanger coil
- Over-fill sensor & domestic safety shut-off valve
- No external F&E tank needed
- Exempt from G3 of the Building Regulations
- 5 Year Warranty* if the cylinder is registered and serviced annually
Technical Specifications:
- Brand: Telford
- Product Code: TSC300/5016
- Cylinder Type: Combination / Vented
- Cylinder height: 2000mm
- Cylinder Diameter: 500mm
- Capacity: 300 litre
- Immersion Heater Rating: 3 Kw
- Orientation: Vertical
- Material: Copper
- Colour: Blue
Telford Tristar Thermal Store Direct Open-Vented Combination Cylinders Copper Blue is designed for installations where electricity is the only heat source available. All stores come with a blend valve/shock arrestor factory fitted and two 3kw immersion heaters. This thermal store has been designed for fitting in situations where the running of an overflow or discharge pipe would be difficult or impractical, for example, flats/apartments. The filling of the unit is achieved by an integral filling loop which is disconnected from the mains water when the correct water level is attained. This cylinder is a magical thing that beautifies your place to another level.
Key Features:
- Available in stainless steel or copper
- Direct, indirect or twin coil options
- Supplies mains pressure hot water & high flow rates
- Up to 3 bar max pressure / 15 liters per minute domestic flow rate
- Top-up stored water annually
- No pump or overflow pipes required
- Integral parts are easily accessed
- Steel casing with white ï¬nish
- 2 x factory-ï¬tested 3kW immersion heaters
- Fully pre-plumbed ready to install
- Fully insulated to minimize any heat loss
- Domestic hot blended set to 47°C
- 22mm non-scaling ribbed heat exchanger coil
- Over-fill sensor & domestic safety shut-off valve
- No external F&E tank needed
- Exempt from G3 of the Building Regulations
- 5 Year Warranty* if the cylinder is registered and serviced annually
Technical Specifications:
- Brand: Telford
- Product Code:TSC115/5010
- Cylinder Type: Combination / Vented
- Cylinder height: 1050mm
- Cylinder Diameter: 450mm
- Capacity: 115 litre
- Immersion Heater Rating: 3 Kw
- Orientation: Vertical
- Material: Copper
- Colour: Blue
