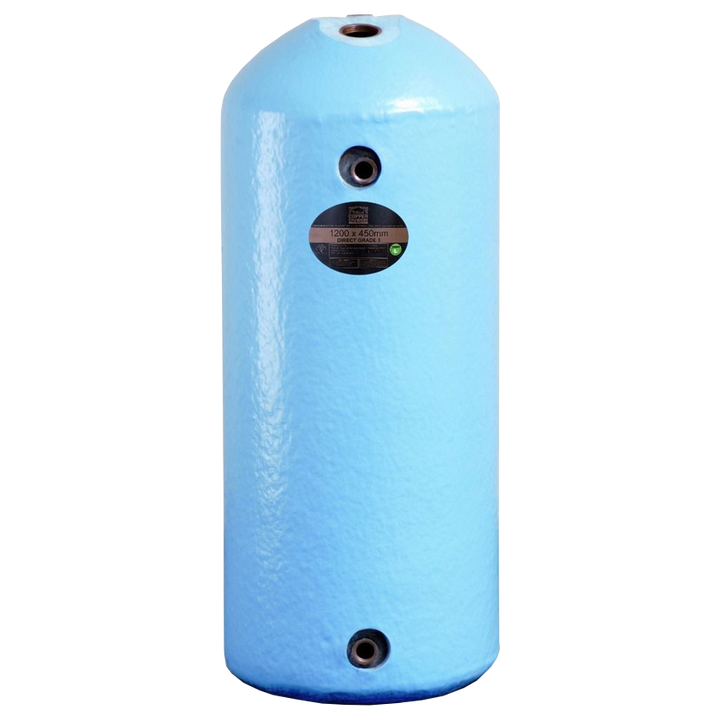

Telford Standard Recognised for the superb quality of their products, Telford Hot Water Cylinders are one of the biggest names in the industry. This Standard Direct Grade 3 Copper Hot Water Cylinder is just one of the products that will show you the great craftsmanship that go into these builds. The Telford Standard Direct Copper Cylinder is the ideal product choice when electricity is the only energy source. The domestic Water is 'directly' heated by the immersion heaters, which sit inside of the cylinder. This means though that the heat-up and recovery times are alot slower than an indirect cylinder. Supplied with a top entry immersion heater connection which directly heats the tank. Direct back boiler connections are also supplied as standard.
Key Features:
- Heated by immersion only – no coil
- 1” F BSP all over including direct back boiler connections
- Slower heat-up & recovery than indirect options
- Ideal for retro-fit applications
- Fully insulated with 35mm foam to minimise any heat loss
- 1 x 2 1/4"""" immersion bosses
- Extra bosses available (including immersion bosses)
- Available in 50-440 litre capacities
- Attractive blue finish (white case finish also available)
- Easy to install
- Manufactured in accordance with BSI566:2002 (Part L)
- 10 Year manufacturing warranty*
- Also available in Grade 2 & Grade 1 copper
- Bespoke options available

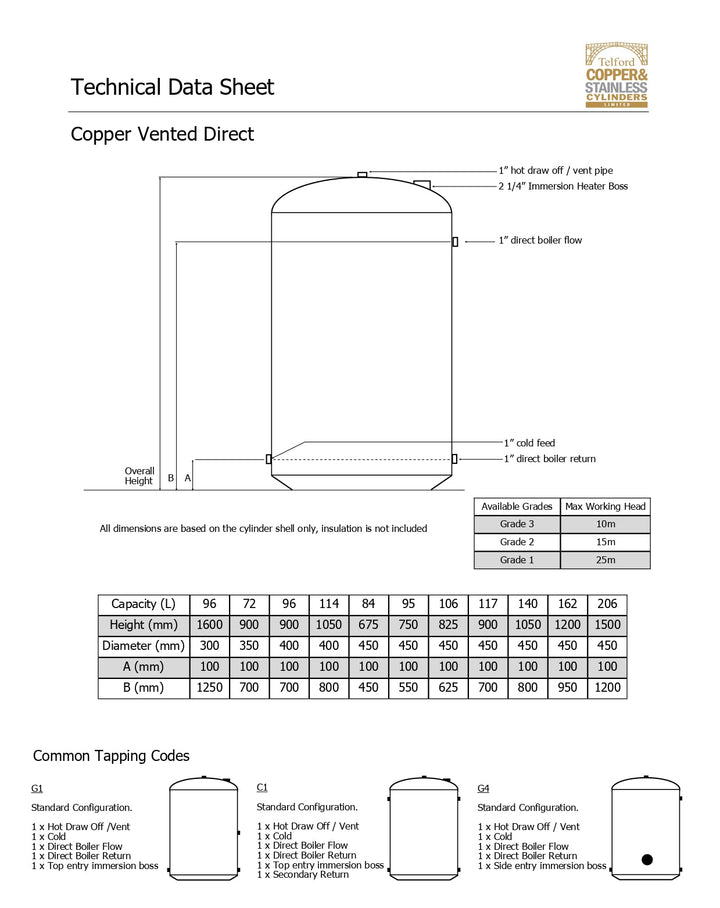

Technical Specifications:
- Brand: Telford
- Manufacturer ID: B3D09045VF
- Cylinder Type: Standard
- System: Vented
- Heating Type: Direct
- Cylinder Height: 900mm
- Cylinder Diameter: 450mm
- Capacity: 117 litre
- Total Heat Sources: 1
- Orientation: Vertical
- Material: Copper
- Colour: Blue
Telford Standard is recognised for the superb quality of its products, and Telford Hot Water Cylinders is one of the biggest names in the industry. This Standard Direct Grade 3 Copper Hot Water Cylinder is just one of the products that will show you the great craftsmanship that goes into these builds. The Telford Standard Direct Copper Cylinder is the ideal product choice when electricity is the only energy source. The domestic Water is 'directly' heated by the immersion heaters, which sit inside the cylinder. This means though that the heat-up and recovery times are a lot slower than an indirect cylinder. Supplied with a top entry immersion heater connection which directly heats the tank. Direct back boiler connections are also supplied as standard.
Key Features:
- Heated by immersion only – no coil
- 1” F BSP all over including direct back boiler connections
- Slower heat-up & recovery than indirect options
- Ideal for retro-fit applications
- Fully insulated with 35mm foam to minimise any heat loss
- 1 x 2 1/4" immersion bosses
- Extra bosses available (including immersion bosses)
- Available in 50-440 litre capacities
- Attractive blue finish (white case finish also available)
- Easy to install
- Manufactured in accordance with BSI566:2002 (Part L)
- 10 Year manufacturing warranty*
- Also available in Grade 2 & Grade 1 copper
- Bespoke options available
Technical Specifications:
- Brand: Telford
- Manufacturer ID: B3D10540VF
- Cylinder Type: Standard
- System: Vented
- Heating Type: Direct
- Cylinder Height: 1050mm
- Cylinder Diameter: 400mm
- Capacity: 114 litre
- Total Heat Sources: 1
- Orientation: Vertical
- Material: Copper
- Colour: Blue
Telford Standard Recognised for the superb quality of their products, Telford Hot Water Cylinders are one of the biggest names in the industry. This Standard Direct Grade 3 Copper Hot Water Cylinder is just one of the products that will show you the great craftsmanship that go into these builds. The Telford Standard Direct Copper Cylinder is the ideal product choice when electricity is the only energy source. The domestic Water is 'directly' heated by the immersion heaters, which sit inside of the cylinder. This means though that the heat-up and recovery times are alot slower than an indirect cylinder. Supplied with a top entry immersion heater connection which directly heats the tank. Direct back boiler connections are also supplied as standard.
Key Features:
- Heated by immersion only – no coil
- 1” F BSP all over including direct back boiler connections
- Slower heat-up & recovery than indirect options
- Ideal for retro-fit applications
- Fully insulated with 35mm foam to minimise any heat loss
- 1 x 2 1/4"""" immersion bosses
- Extra bosses available (including immersion bosses)
- Available in 50-440 litre capacities
- Attractive blue finish (white case finish also available)
- Easy to install
- Manufactured in accordance with BSI566:2002 (Part L)
- 10 Year manufacturing warranty*
- Also available in Grade 2 & Grade 1 copper
- Bespoke options available
Technical Specifications:
- Brand: Telford
- Manufacturer ID: B3D10545VF
- Cylinder Type: Standard
- System: Vented
- Heating Type: Direct
- Cylinder Height: 1050mm
- Cylinder Diameter: 450mm
- Capacity: 140 litre
- Total Heat Sources: 1
- Orientation: Vertical
- Material: Copper
- Colour: Blue
Telford Standard Recognised for the superb quality of their products, Telford Hot Water Cylinders are one of the biggest names in the industry. This Standard Direct Grade 3 Copper Hot Water Cylinder is just one of the products that will show you the great craftsmanship that go into these builds. The Telford Standard Direct Copper Cylinder is the ideal product choice when electricity is the only energy source. The domestic Water is 'directly' heated by the immersion heaters, which sit inside of the cylinder. This means though that the heat-up and recovery times are alot slower than an indirect cylinder. Supplied with a top entry immersion heater connection which directly heats the tank. Direct back boiler connections are also supplied as standard.
Key Features:
- Heated by immersion only – no coil
- 1” F BSP all over including direct back boiler connections
- Slower heat-up & recovery than indirect options
- Ideal for retro-fit applications
- Fully insulated with 35mm foam to minimise any heat loss
- 1 x 2 1/4"""" immersion bosses
- Extra bosses available (including immersion bosses)
- Available in 50-440 litre capacities
- Attractive blue finish (white case finish also available)
- Easy to install
- Manufactured in accordance with BSI566:2002 (Part L)
- 10 Year manufacturing warranty*
- Also available in Grade 2 & Grade 1 copper
- Bespoke options available
Technical Specifications:
- Brand: Telford
- Manufacturer ID: B3D12045VF
- Cylinder Type: Standard
- System: Vented
- Heating Type: Direct
- Cylinder Height: 1200mm
- Cylinder Diameter: 450mm
- Capacity: 162 litre
- Total Heat Sources: 1
- Orientation: Vertical
- Material: Copper
- Colour: Blue
Telford Standard Recognised for the superb quality of their products, Telford Hot Water Cylinders are one of the biggest names in the industry. This Standard Direct Grade 3 Copper Hot Water Cylinder is just one of the products that will show you the great craftsmanship that go into these builds. The Telford Standard Direct Copper Cylinder is the ideal product choice when electricity is the only energy source. The domestic Water is 'directly' heated by the immersion heaters, which sit inside of the cylinder. This means though that the heat-up and recovery times are alot slower than an indirect cylinder. Supplied with a top entry immersion heater connection which directly heats the tank. Direct back boiler connections are also supplied as standard.
Key Features:
- Heated by immersion only – no coil
- 1” F BSP all over including direct back boiler connections
- Slower heat-up & recovery than indirect options
- Ideal for retro-fit applications
- Fully insulated with 35mm foam to minimise any heat loss
- 1 x 2 1/4"""" immersion bosses
- Extra bosses available (including immersion bosses)
- Available in 50-440 litre capacities
- Attractive blue finish (white case finish also available)
- Easy to install
- Manufactured in accordance with BSI566:2002 (Part L)
- 10 Year manufacturing warranty*
- Also available in Grade 2 & Grade 1 copper
- Bespoke options available
Technical Specifications:
- Brand: Telford
- Manufacturer ID: B3D09040VF
- Cylinder Type: Standard
- System: Vented
- Heating Type: Direct
- Cylinder Height: 1600mm
- Cylinder Diameter: 300mm
- Capacity: 96 litre
- Total Heat Sources: 1
- Orientation: Vertical
- Material: Copper
- Colour: Blue
