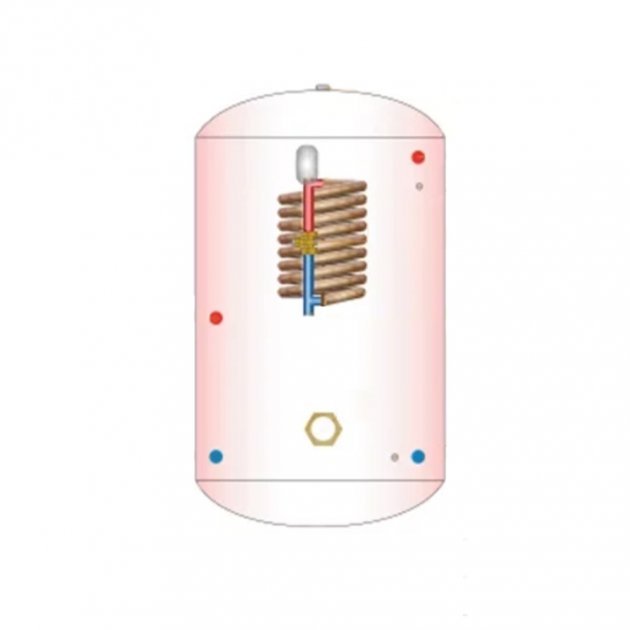

The Telford Sealed System is a Compact Thermal Store Cylinder designed to efficiently store and distribute hot water. It is specifically tailored for installations where open-vented heat sources are not present, making it an ideal choice for modern heating systems. The cylinder comes equipped with a blend valve and shock arrestor factory fitted, ensuring smooth water temperature regulation and protection against pressure fluctuations. Moreover, for added convenience and security, a 3kw immersion heater is included as a backup.
Key Features
- Combined hot water storage cylinder and feed / expansion tank
- Comes with a blend valve/ shock arrestor/drain-off valve
- Removes the need for feed & expansion tank in roof space
- Factory Fitted 3kW immersion heaters
- Fitted 15mm (G 1/2) threaded drain cock boss
- Ideal for retro-fit applications
- Fully insulated with 50mm foam lagging adding an extra 100mm to the overall diameter
- Available in 115 - 300 litre capacities
- Attractive blue finish
- Easy to install time-saving option
- Manufactured in accordance with BSI566-2002 (Part L)
- Bespoke options available
- Supplies mains pressure hot water and high flow rates
- Up to 3 bar max pressure,15-18L liters per minute domestic flow rate
- Integral parts easily accessed
- Comes with a 10 year gaurantee when serviced yearly
Technical Specifications:
- Brand: Telford
- Product Code: TSS135/1231
- Item: Cylinder
- Colour: Blue
- Cylinder Height: 1000mm
- Cylinder Diameter: 450mm
- Capacity: 135 litre
- Material: Copper
- Style: Modern
- Immersion Heater: 3Kw
- Hot Draw Off: 22mm
- Cold Feed: 22mm
- Thumb Vent: 22mm
- Sealed Heating Flow: 28mm
- Sealed Boiler Flow: 28mm
- Made In: UK
The Telford Sealed System is a Compact Thermal Store Cylinder designed to efficiently store and distribute hot water. It is specifically tailored for installations where open-vented heat sources are not present, making it an ideal choice for modern heating systems. The cylinder comes equipped with a blend valve and shock arrestor factory fitted, ensuring smooth water temperature regulation and protection against pressure fluctuations. Moreover, for added convenience and security, a 3kw immersion heater is included as a backup.
Key Features
- Combined hot water storage cylinder and feed / expansion tank
- Comes with a blend valve/ shock arrestor/drain-off valve
- Removes the need for feed & expansion tank in roof space
- Factory Fitted 3kW immersion heaters
- Fitted 15mm (G 1/2) threaded drain cock boss
- Ideal for retro-fit applications
- Fully insulated with 50mm foam lagging adding an extra 100mm to the overall diameter
- Available in 115 - 300 litre capacities
- Attractive blue finish
- Easy to install time-saving option
- Manufactured in accordance with BSI566-2002 (Part L)
- Bespoke options available
- Supplies mains pressure hot water and high flow rates
- Up to 3 bar max pressure,15-18L liters per minute domestic flow rate
- Integral parts easily accessed
- Comes with a 10 year gaurantee when serviced yearly
Technical Specifications:
- Brand: Telford
- Product Code: TSS144/1342
- Item: Cylinder
- Colour: Blue
- Cylinder Height: 1050mm
- Cylinder Diameter: 450mm
- Capacity: 144 litre
- Material: Copper
- Style: Modern
- Immersion Heater: 3Kw
- Hot Draw Off: 22mm
- Cold Feed: 22mm
- Thumb Vent: 22mm
- Sealed Heating Flow: 28mm
- Sealed Boiler Flow: 28mm
- Made In: UK
The Telford Sealed System is a Compact Thermal Store Cylinder designed to efficiently store and distribute hot water. It is specifically tailored for installations where open-vented heat sources are not present, making it an ideal choice for modern heating systems. The cylinder comes equipped with a blend valve and shock arrestor factory fitted, ensuring smooth water temperature regulation and protection against pressure fluctuations. Moreover, for added convenience and security, a 3kw immersion heater is included as a backup.
Key Features
- Combined hot water storage cylinder and feed / expansion tank
- Comes with a blend valve/ shock arrestor/drain-off valve
- Removes the need for feed & expansion tank in roof space
- Factory Fitted 3kW immersion heaters
- Fitted 15mm (G 1/2) threaded drain cock boss
- Ideal for retro-fit applications
- Fully insulated with 50mm foam lagging adding an extra 100mm to the overall diameter
- Available in 115 - 300 litre capacities
- Attractive blue finish
- Easy to install time-saving option
- Manufactured in accordance with BSI566-2002 (Part L)
- Bespoke options available
- Supplies mains pressure hot water and high flow rates
- Up to 3 bar max pressure,15-18L liters per minute domestic flow rate
- Integral parts easily accessed
- Comes with a 10 year gaurantee when serviced yearly
Technical Specifications:
- Brand: Telford
- Product Code: TSS160/1453
- Item: Cylinder
- Colour: Blue
- Cylinder Height: 1200mm
- Cylinder Diameter: 450mm
- Capacity: 160 litre
- Material: Copper
- Style: Modern
- Immersion Heater: 3Kw
- Hot Draw Off: 22mm
- Cold Feed: 22mm
- Thumb Vent: 22mm
- Sealed Heating Flow: 28mm
- Sealed Boiler Flow: 28mm
- Made In: UK
The Telford Sealed System is a Compact Thermal Store Cylinder designed to efficiently store and distribute hot water. It is specifically tailored for installations where open-vented heat sources are not present, making it an ideal choice for modern heating systems. The cylinder comes equipped with a blend valve and shock arrestor factory fitted, ensuring smooth water temperature regulation and protection against pressure fluctuations. Moreover, for added convenience and security, a 3kw immersion heater is included as a backup.
Key Features
- Combined hot water storage cylinder and feed / expansion tank
- Comes with a blend valve/ shock arrestor/drain-off valve
- Removes the need for feed & expansion tank in roof space
- Factory Fitted 3kW immersion heaters
- Fitted 15mm (G 1/2) threaded drain cock boss
- Ideal for retro-fit applications
- Fully insulated with 50mm foam lagging adding an extra 100mm to the overall diameter
- Available in 115 - 300 litre capacities
- Attractive blue finish
- Easy to install time-saving option
- Manufactured in accordance with BSI566-2002 (Part L)
- Bespoke options available
- Supplies mains pressure hot water and high flow rates
- Up to 3 bar max pressure,15-18L liters per minute domestic flow rate
- Integral parts easily accessed
- Comes with a 10 year gaurantee when serviced yearly
Technical Specifications:
- Brand: Telford
- Product Code: TSS200/1564
- Item: Cylinder
- Colour: Blue
- Cylinder Height: 1500mm
- Cylinder Diameter: 450mm
- Capacity: 200 litre
- Material: Copper
- Style: Modern
- Immersion Heater: 3Kw
- Hot Draw Off: 22mm
- Cold Feed: 22mm
- Thumb Vent: 22mm
- Sealed Heating Flow: 28mm
- Sealed Boiler Flow: 28mm
- Made In: UK
The Telford Sealed System is a Compact Thermal Store Cylinder designed to efficiently store and distribute hot water. It is specifically tailored for installations where open-vented heat sources are not present, making it an ideal choice for modern heating systems. The cylinder comes equipped with a blend valve and shock arrestor factory fitted, ensuring smooth water temperature regulation and protection against pressure fluctuations. Moreover, for added convenience and security, a 3kw immersion heater is included as a backup.
Key Features
- Combined hot water storage cylinder and feed / expansion tank
- Comes with a blend valve/ shock arrestor/drain-off valve
- Removes the need for feed & expansion tank in roof space
- Factory Fitted 3kW immersion heaters
- Fitted 15mm (G 1/2) threaded drain cock boss
- Ideal for retro-fit applications
- Fully insulated with 50mm foam lagging adding an extra 100mm to the overall diameter
- Available in 115 - 300 litre capacities
- Attractive blue finish
- Easy to install time-saving option
- Manufactured in accordance with BSI566-2002 (Part L)
- Bespoke options available
- Supplies mains pressure hot water and high flow rates
- Up to 3 bar max pressure,15-18L liters per minute domestic flow rate
- Integral parts easily accessed
- Comes with a 10 year gaurantee when serviced yearly
Technical Specifications:
- Brand: Telford
- Product Code: TSS250/1675
- Item: Cylinder
- Colour: Blue
- Cylinder Height: 1800mm
- Cylinder Diameter: 450mm
- Capacity: 250 litre
- Material: Copper
- Style: Modern
- Immersion Heater: 3Kw
- Hot Draw Off: 22mm
- Cold Feed: 22mm
- Thumb Vent: 22mm
- Sealed Heating Flow: 28mm
- Sealed Boiler Flow: 28mm
- Made In: UK
The Telford Sealed System is a Compact Thermal Store Cylinder designed to efficiently store and distribute hot water. It is specifically tailored for installations where open-vented heat sources are not present, making it an ideal choice for modern heating systems. The cylinder comes equipped with a blend valve and shock arrestor factory fitted, ensuring smooth water temperature regulation and protection against pressure fluctuations. Moreover, for added convenience and security, a 3kw immersion heater is included as a backup.
Key Features
- Combined hot water storage cylinder and feed / expansion tank
- Comes with a blend valve/ shock arrestor/drain-off valve
- Removes the need for feed & expansion tank in roof space
- Factory Fitted 3kW immersion heaters
- Fitted 15mm (G 1/2) threaded drain cock boss
- Ideal for retro-fit applications
- Fully insulated with 50mm foam lagging adding an extra 100mm to the overall diameter
- Available in 115 - 300 litre capacities
- Attractive blue finish
- Easy to install time-saving option
- Manufactured in accordance with BSI566-2002 (Part L)
- Bespoke options available
- Supplies mains pressure hot water and high flow rates
- Up to 3 bar max pressure,15-18L liters per minute domestic flow rate
- Integral parts easily accessed
- Comes with a 10 year gaurantee when serviced yearly
Technical Specifications:
- Brand: Telford
- Product Code: TSS300/1786
- Item: Cylinder
- Colour: Blue
- Cylinder Height: 1800mm
- Cylinder Diameter: 500mm
- Capacity: 300 litre
- Material: Copper
- Style: Modern
- Immersion Heater: 3Kw
- Hot Draw Off: 22mm
- Cold Feed: 22mm
- Thumb Vent: 22mm
- Sealed Heating Flow: 28mm
- Sealed Boiler Flow: 28mm
- Made In: UK
The Telford Sealed System is a Compact Thermal Store Cylinder designed to efficiently store and distribute hot water. It is specifically tailored for installations where open-vented heat sources are not present, making it an ideal choice for modern heating systems. The cylinder comes equipped with a blend valve and shock arrestor factory fitted, ensuring smooth water temperature regulation and protection against pressure fluctuations. Moreover, for added convenience and security, a 3kw immersion heater is included as a backup.
Key Features
- Combined hot water storage cylinder and feed / expansion tank
- Comes with a blend valve/ shock arrestor/drain-off valve
- Removes the need for feed & expansion tank in roof space
- Factory Fitted 3kW immersion heaters
- Fitted 15mm (G 1/2) threaded drain cock boss
- Ideal for retro-fit applications
- Fully insulated with 50mm foam lagging adding an extra 100mm to the overall diameter
- Available in 115 - 300 litre capacities
- Attractive blue finish
- Easy to install time-saving option
- Manufactured in accordance with BSI566-2002 (Part L)
- Bespoke options available
- Supplies mains pressure hot water and high flow rates
- Up to 3 bar max pressure,15-18L liters per minute domestic flow rate
- Integral parts easily accessed
- Comes with a 10 year gaurantee when serviced yearly
Technical Specifications:
- Brand: Telford
- Product Code: TSS115/1120
- Item: Cylinder
- Colour: Blue
- Cylinder Height: 900mm
- Cylinder Diameter: 450mm
- Capacity: 115 litre
- Material: Copper
- Style: Modern
- Immersion Heater: 3Kw
- Hot Draw Off: 22mm
- Cold Feed: 22mm
- Thumb Vent: 22mm
- Sealed Heating Flow: 28mm
- Sealed Boiler Flow: 28mm
- Made In: UK
