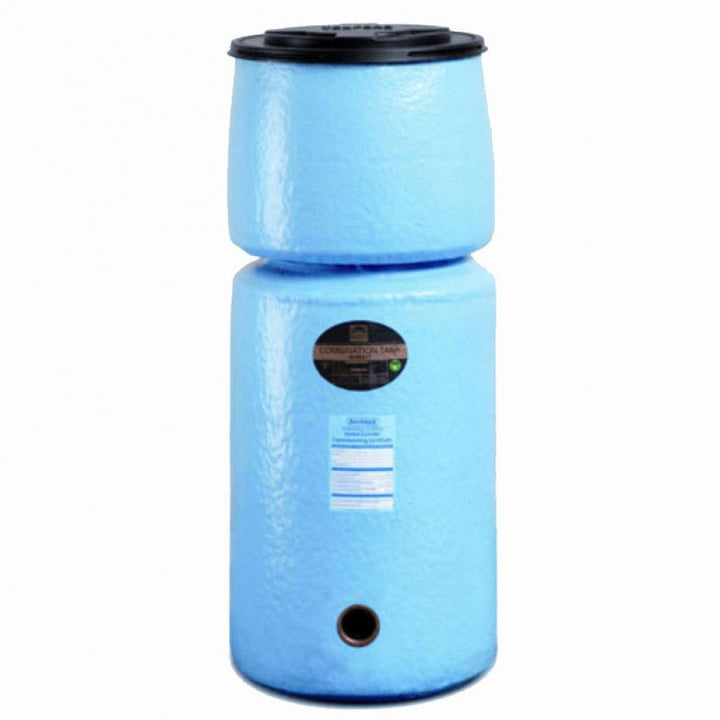

Telford Direct Combination Water Cylinder 1050mm x 450mm unit has been designed to combine the cold water feed and the hot water cylinder into one unit. Benefits of doing this are that it will reduce labour time when installing the product and will also free up valuable roof space as well. The incoming supply is connected directly to the top section of the cylinder, this then feeds the bottom part of the cylinder (the hot water section) when water is drawn from a hot tap. The cylinder is manufactured to BS3198 standards. Recognized for the superb quality of their products, Telford Hot Water Cylinders are one of the biggest names in the industry. This Combination Hot Water Cylinder is just one of the products that will show you the great craftsmanship that go into these builds.
Key Features:
- Supplied with 1 immersion heater boss only
- Insulation thickness is 40mm adding an extra 100mm to the diameter
- Normally operates at around 72 Degree C
- Designed to be heated with a 3kw immersion heater
- Heat is exchanged into the cylinder and warms the domestic hot water
- Manufactured and fully approved to the latest British Standard specification BS1566:2002 (Part L)
- Manufactured from thicker copper material
- 10 year guarantee from the manufacturer
Technical Specification:
- Brand: Telford
- Manufacturer ID: BCD10545VF
- Cylinder Type: Combination
- Heating Type: Direct
- Cylinder Height: 1050mm
- Cylinder Diameter: 450mm
- Capacity: 115 Litres (Hot) | 20 Litres (Cold)
- Total Heat Sources: 2
- Orientation: Vertical
- Material: Copper
- Colour: Blue
Telford Direct Combination Water Cylinder 1200mm x 450mm unit has been designed to combine the cold water feed and the hot water cylinder into one unit. Benefits of doing this are that it will reduce labour time when installing the product and will also free up valuable roof space as well. The incoming supply is connected directly to the top section of the cylinder, this then feeds the bottom part of the cylinder (the hot water section) when water is drawn from a hot tap. The cylinder is manufactured to BS3198 standards. Recognized for the superb quality of their products, Telford Hot Water Cylinders are one of the biggest names in the industry. This Combination Hot Water Cylinder is just one of the products that will show you the great craftsmanship that go into these builds.
Key Features:
- Supplied with 1 immersion heater boss only
- Insulation thickness is 40mm adding an extra 100mm to the diameter
- Normally operates at around 72 Degree C
- Designed to be heated with a 3kw immersion heater
- Heat is exchanged into the cylinder and warms the domestic hot water
- Manufactured and fully approved to the latest British Standard specification BS1566:2002 (Part L)
- Manufactured from thicker copper material
- 10 year guarantee from the manufacturer
Technical Specification:
- Brand: Telford
- Manufacturer ID: BCD12045VF
- Cylinder Type: Combination
- Heating Type: Direct
- Cylinder Height: 1200mm
- Cylinder Diameter: 450mm
- Capacity: 120 Litres (Hot) | 40 Litres (Cold)
- Total Heat Sources: 2
- Orientation: Vertical
- Material: Copper
- Colour: Blue
Telford Direct Combination Water Cylinder 900mm x 450mm unit has been designed to combine the cold water feed and the hot water cylinder into one unit. Benefits of doing this are that it will reduce labour time when installing the product and will also free up valuable roof space as well. The incoming supply is connected directly to the top section of the cylinder, this then feeds the bottom part of the cylinder (the hot water section) when water is drawn from a hot tap. The cylinder is manufactured to BS3198 standards. Recognized for the superb quality of their products, Telford Hot Water Cylinders are one of the biggest names in the industry. This Combination Hot Water Cylinder is just one of the products that will show you the great craftsmanship that go into these builds.
Key Features:
- Supplied with 1 immersion heater boss only
- Insulation thickness is 40mm adding an extra 100mm to the diameter
- Normally operates at around 72 Degree C
- Designed to be heated with a 3kw immersion heater
- Heat is exchanged into the cylinder and warms the domestic hot water
- Manufactured and fully approved to the latest British Standard specification BS1566:2002 (Part L)
- Manufactured from thicker copper material
- 10 year guarantee from the manufacturer
Technical Specification:
- Brand: Telford
- Manufacturer ID: BCD09045VF
- Cylinder Type: Combination
- Heating Type: Direct
- Cylinder Height: 900mm
- Cylinder Diameter: 450mm
- Capacity: 90 litre
- Total Heat Sources: 2
- Orientation: Vertical
- Material: Copper
- Colour: Blue
