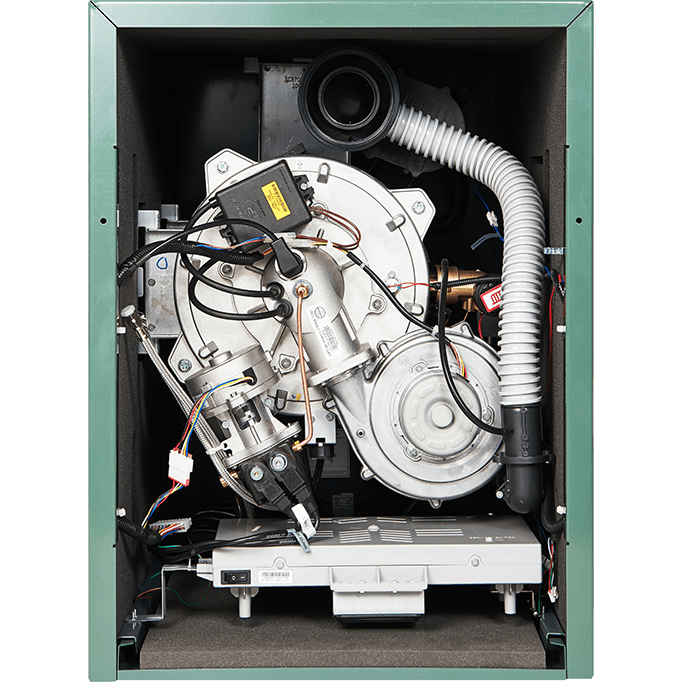

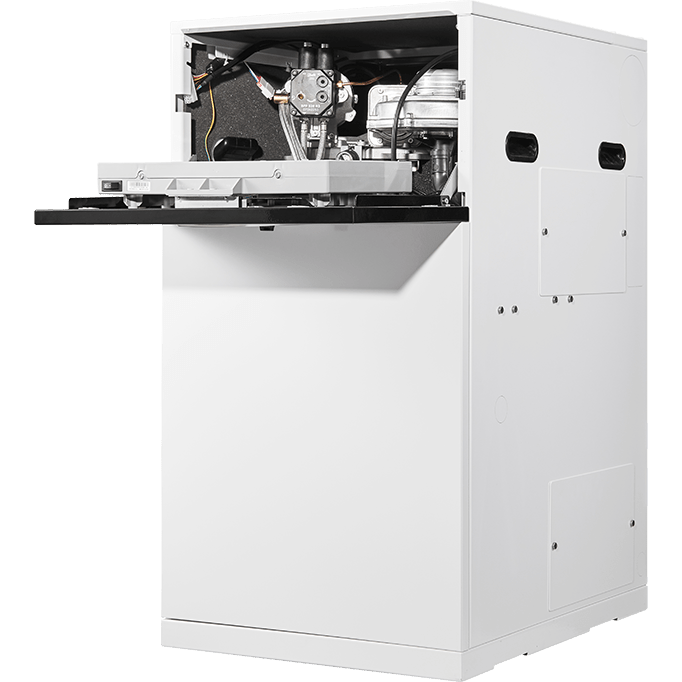

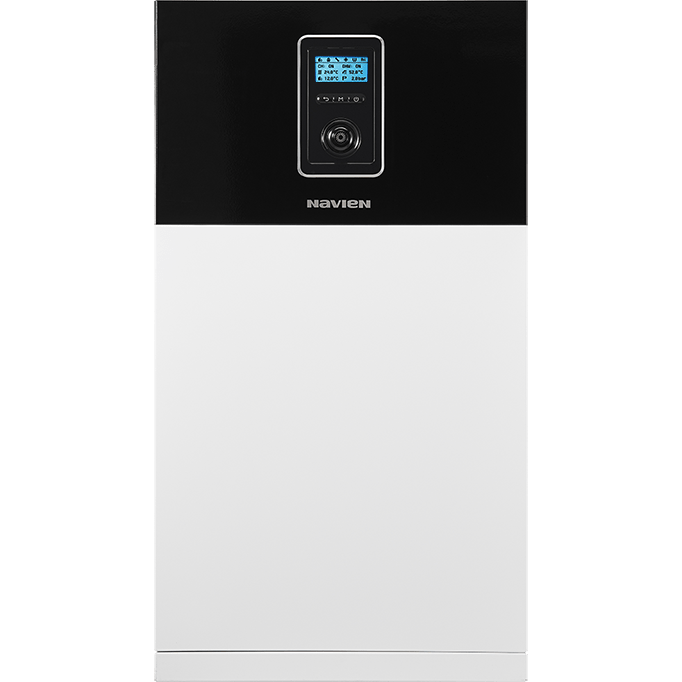

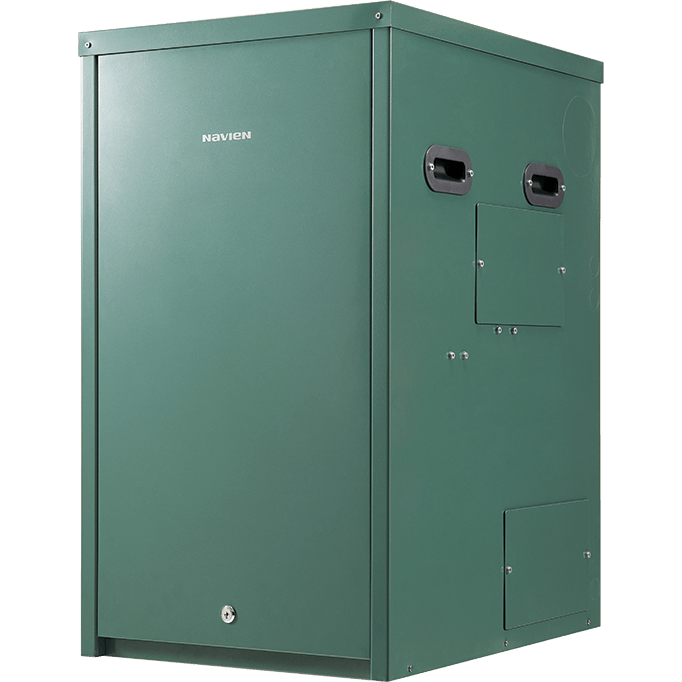

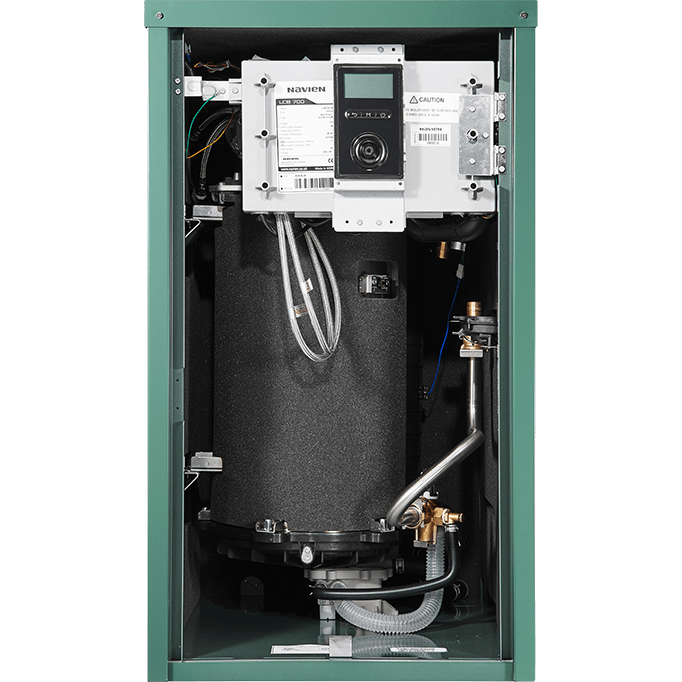

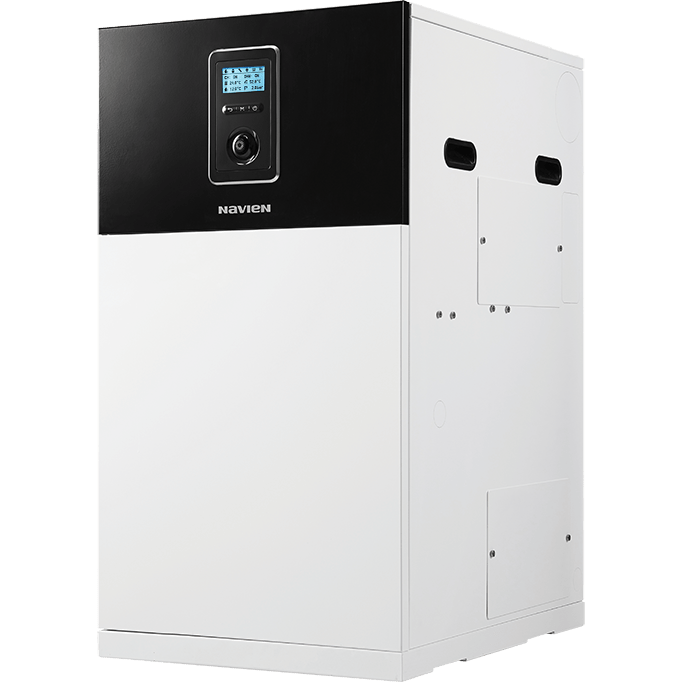

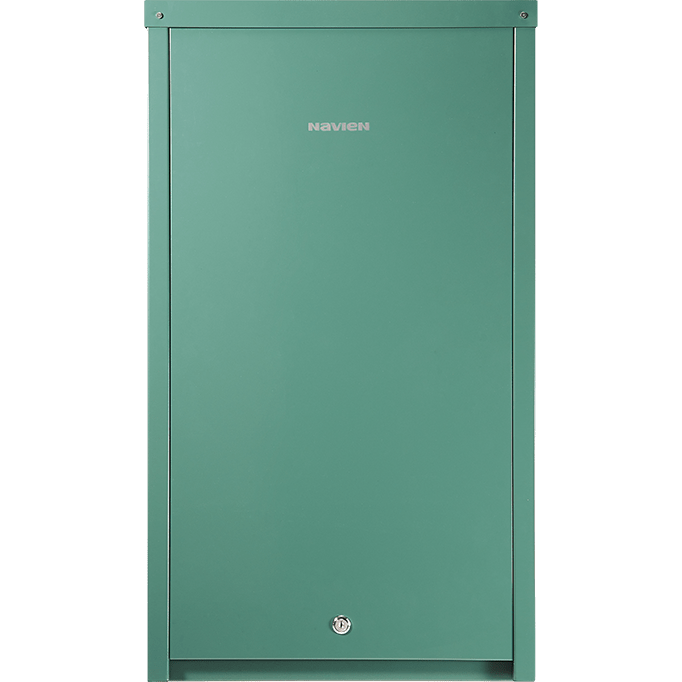

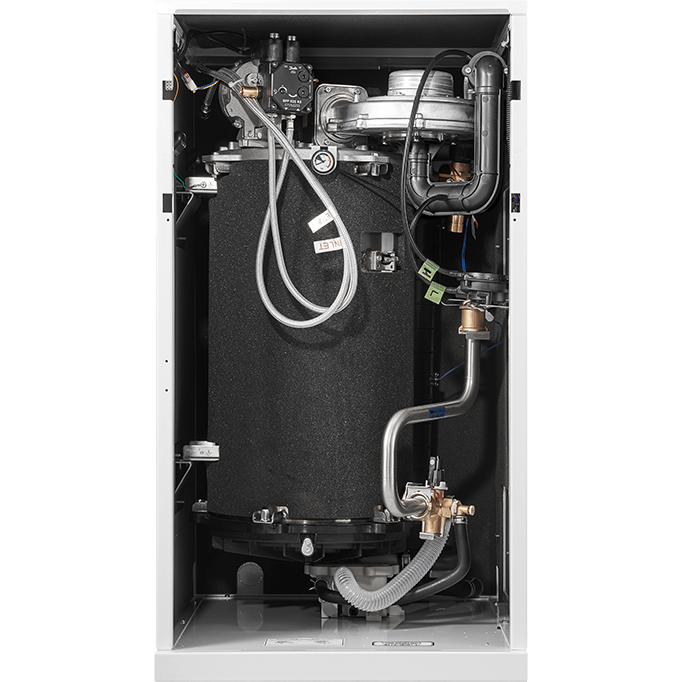

Navien LCB700 LS/LSX Blue Flame Internal/External System Oil Boiler

Navien LCB700 Blue Flame 21kW LS Internal System Oil Boiler

The new LCB700 Blue Flame range of oil boilers is the first in the UK market to offer an A+ energy rating, thanks to an exceptional design and the latest smart control systems. Combined with easy to install features, such as a combined PRV/condensate drain and flexible pipework arrangements, the LCB700 Blue Flame is a boiler like no other.

Key Features:

• HVO compatible
• Future proof Blue Flame technology delivers superior efficiency and ultra-low NOx emissions
• Lightweight design for easy installation
• Clean and modern design
• Stainless steel heat exchangers for optimum durability and long term efficiencies
• Flue venting up to 21m in horizontal and vertical arrangements
• Flexible installation options thanks to compact design and flueing
• Achieves highest 3-star mark in DHW performance (in accordance with EN Regulations)
• 3-zone ready with Smart Plus control pack

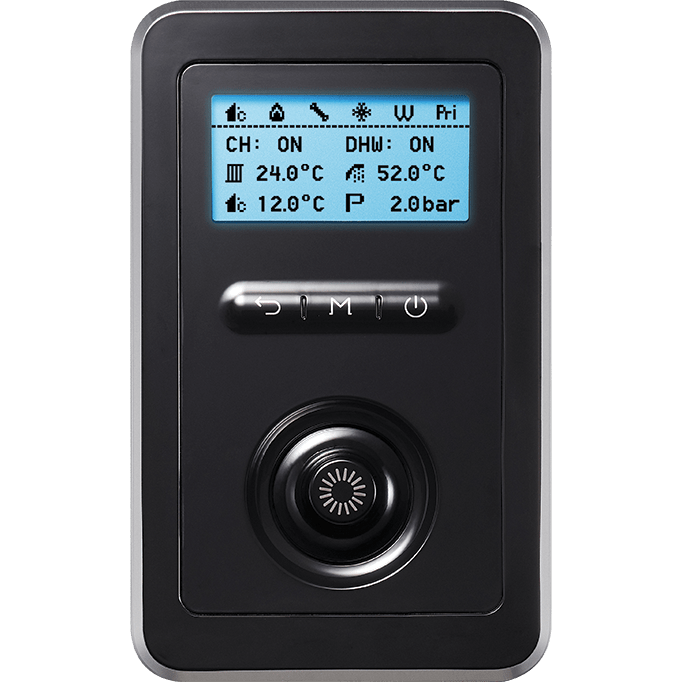

• Text driven integral display for intuitive control and fuel consumption figures
• Class leading energy efficiency for reduced running costs
• 10-year parts and labour warranty as standard

Technical Specifications:

• Brand: Navien
• Model No: PLCB0021SH001
• Product Type: System Oil Boiler
• Heat Output 80/60°C: 16/21kW
• Heat Output 50/30°C: 23.0kW
• Flue Size: Coaxial Plastic Ø 60/100
• Max Horizontal Length: 20m
• Max Vertical Length: 21m
• Regular Weight: 58kg
• System Weight: 66kg
• ErP Efficiency: ErP A (93%)
• ErP Efficiency with Smart Plus (x3): ErP A+ (98%)
• NOx Emission Rate: 57.2mg/kWh
• Dimensions (Regular/System Model): 470mm x 600mm x 860mm
• Manufacturer Warranty: 10 Years
