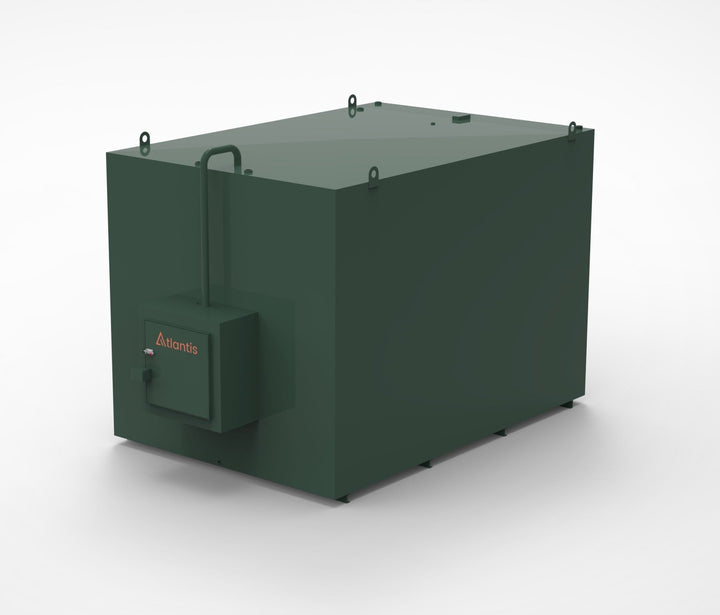

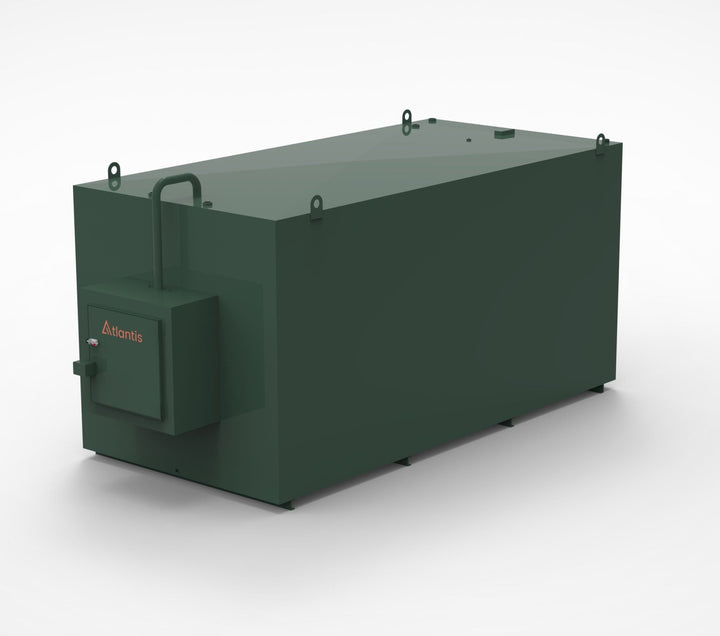

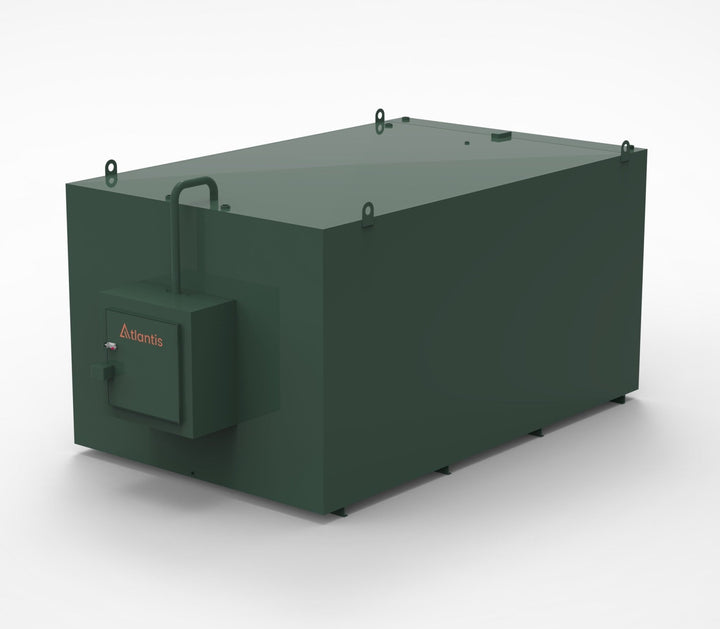

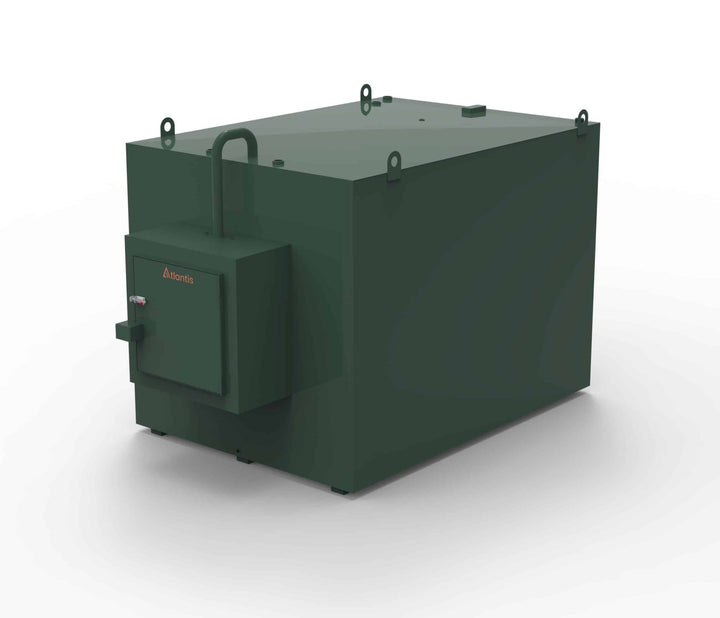

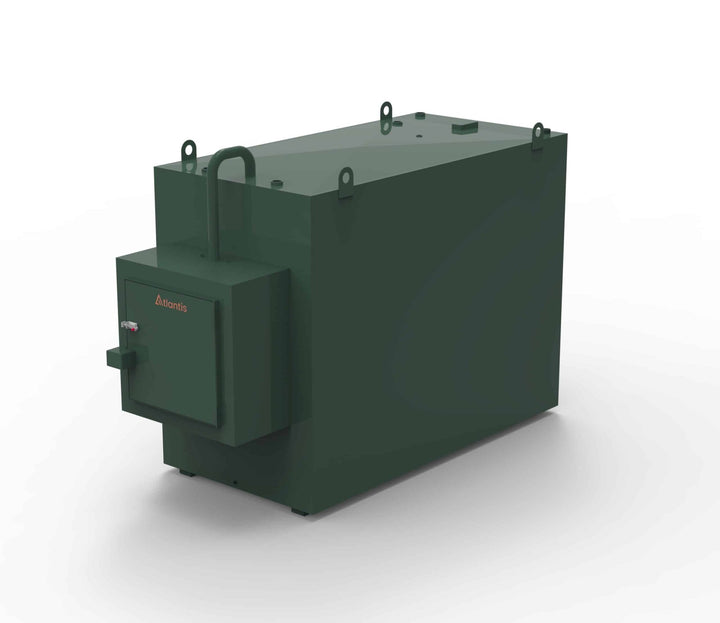

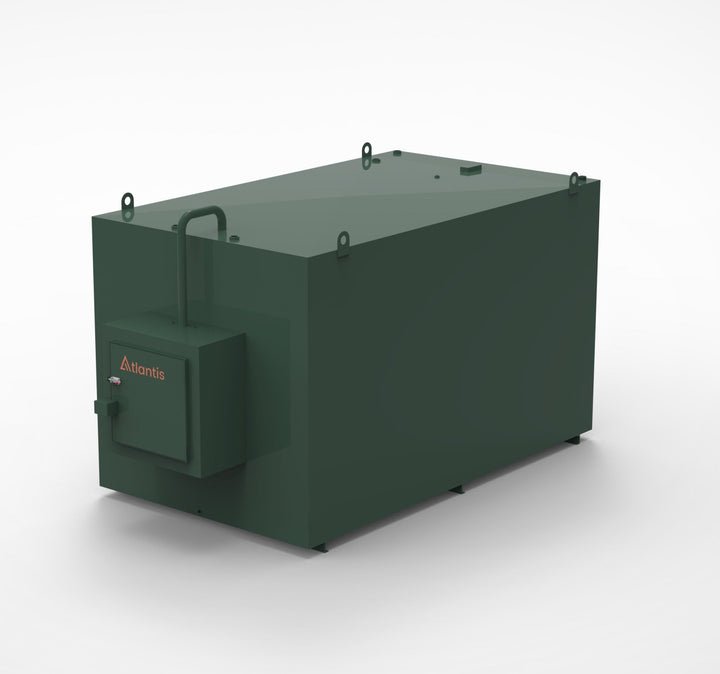

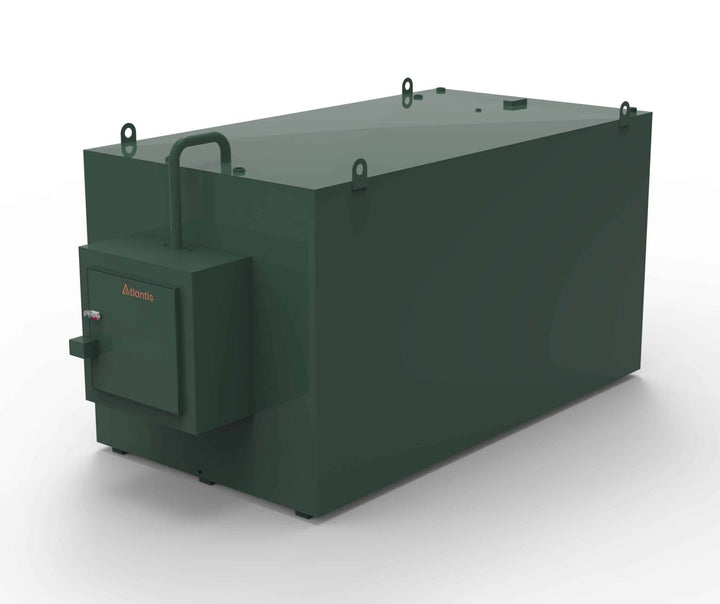

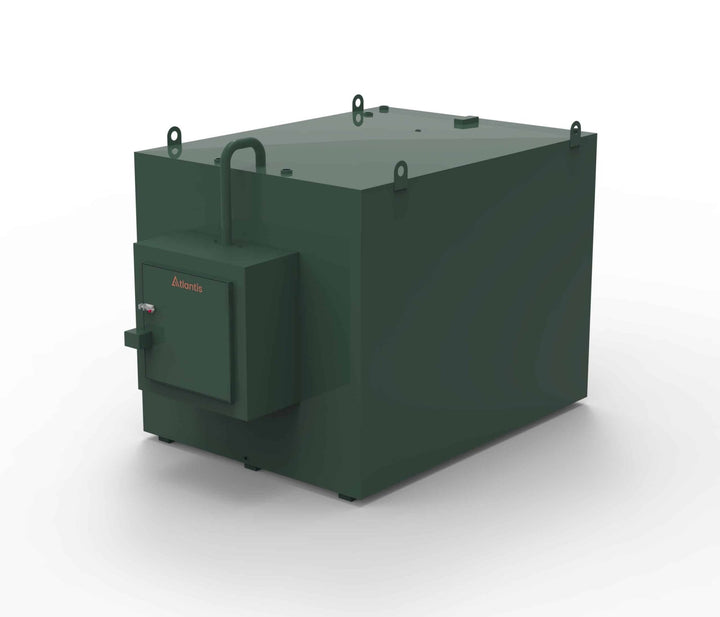

Atlantis Steel Bunded Oil Tank C/W Fill Point Cabinet

A bunded steel oil tank with 4500 litres (990 galls) capacity which is suitable for both domestic and commercial applications.

The liquid is stored in the primary or inner tank and the outer tank forms the required bund with capacity for 110% of the primary tank’s capacity which makes this tank suitable for both domestic and commercial installations.  This tank is suitable for the storage of heating oil, kerosene, diesel, waste oils and many other liquids. A bunded tank is a tank within a tank, the outer tank provides protection for the inner tank which therefore makes it harder for the inner tank to fail. However, in the unlikely event of the inner tank failing, the outer tank will provide secondary containment. These tanks are manufactured to the highest standards and conform to BS799 pt5. The thickness of the steel used varies with tank size and all tanks are pressure tested before they leave the workshop.

This steel tank is a good option if you are wanting to deter any opportunist in oil theft which is very much on the rise currently, especially if the security lid option has been chosen.

Click here to watch video : Atlantis Steel Bunded Oil Tank c/w Fill Point Cabinet

Dimensions:

• Length: 2890mm (including cabinet)
• Width: 1220mm
• Height: 1830mm
• Weight: 970kg
• Cabinet: (900mm x 900mm x 450mm)

Specifications:

• 4500 litre (990 galls) capacity
• Low-level fill point – front-mounted
• Lockable cabinet swing door
• 2” fill point inside the cabinet, c/w lever ball valve & non-return valve
• 1 no tank to bund vent & 2″ bund vent
• 1 no 1.5″ bund socket
• 2 no 1.5″ tank socket
• 2 no 0.5″ sockets in the cabinet for probes
• Standard Colour: Holly Green
• Battery overfill alarm

Warranty:

10-year warranty, each tank is provided with a warranty manual

Compliance:

This tank complies with: Oil Pollution Prevention Guidelines (England & Wales) 2002 PPG2 and BS799 pt5.
