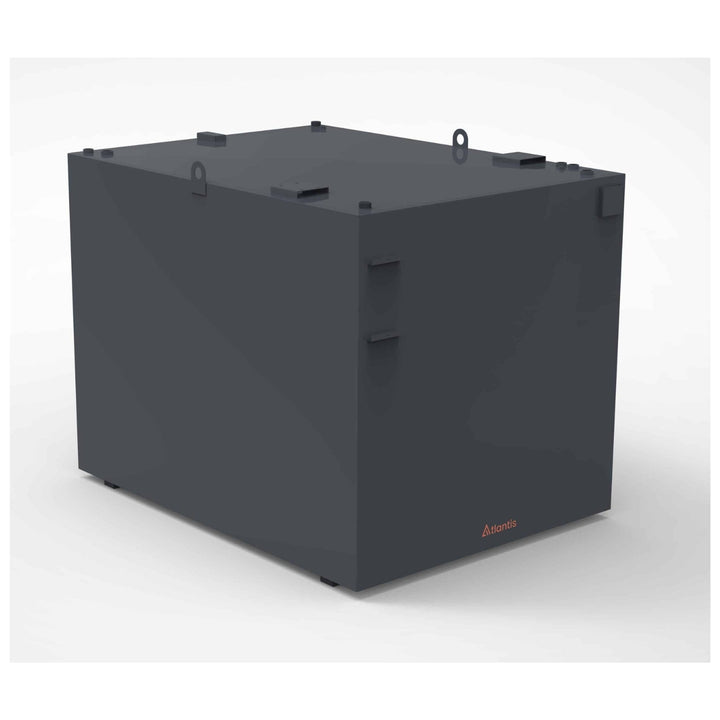

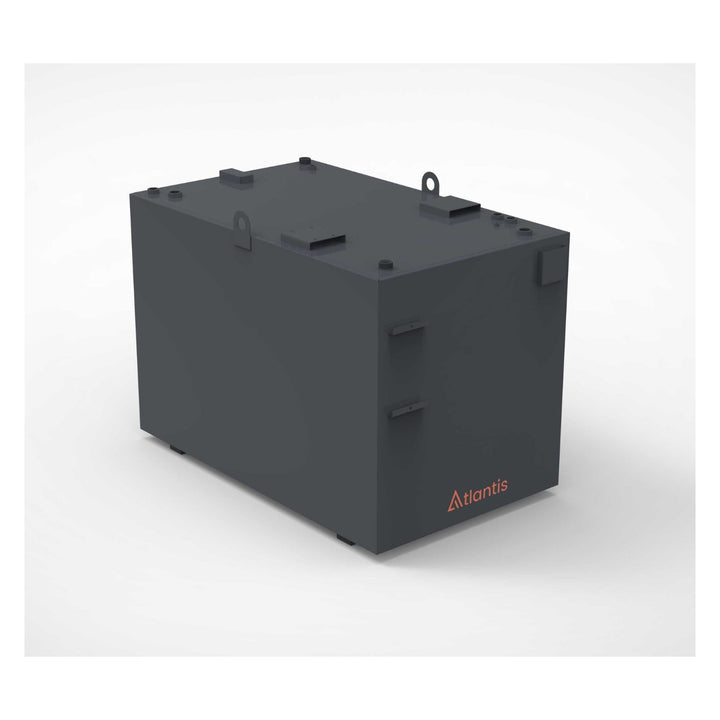

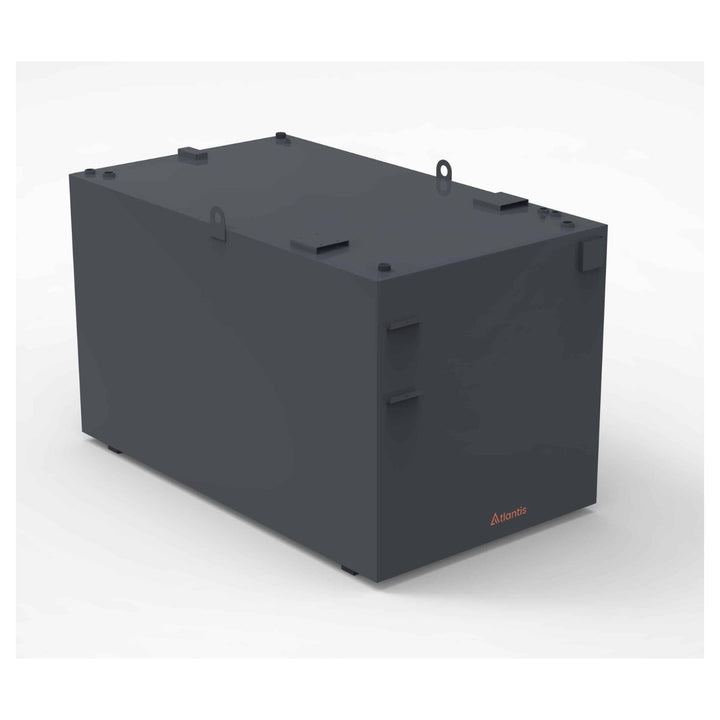

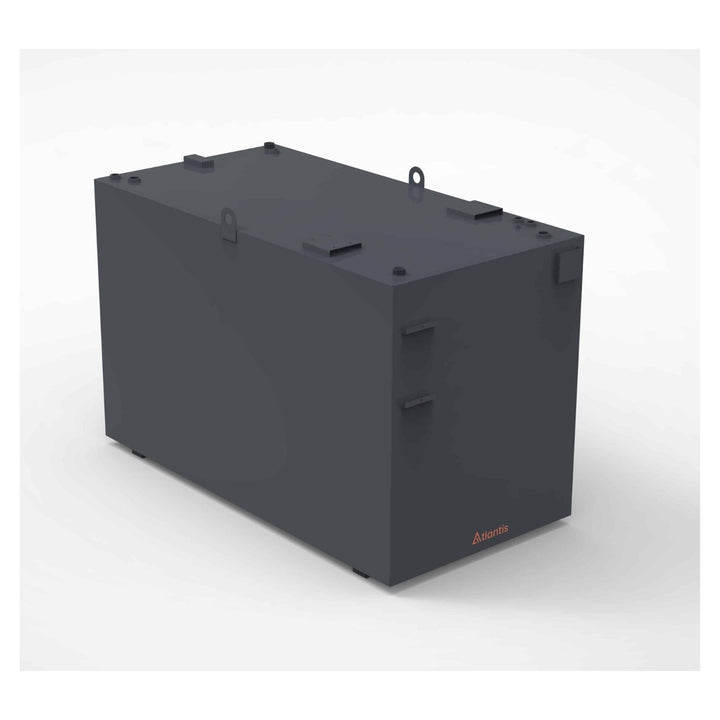

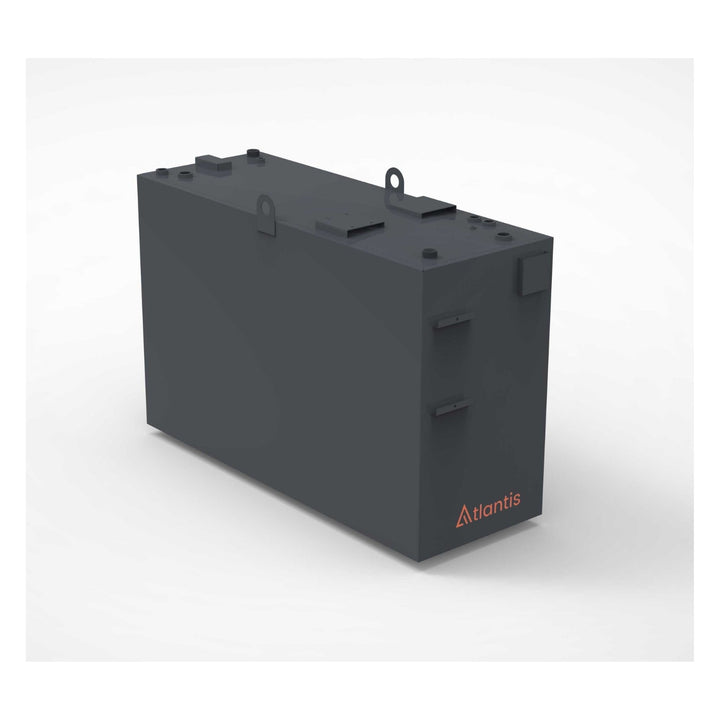

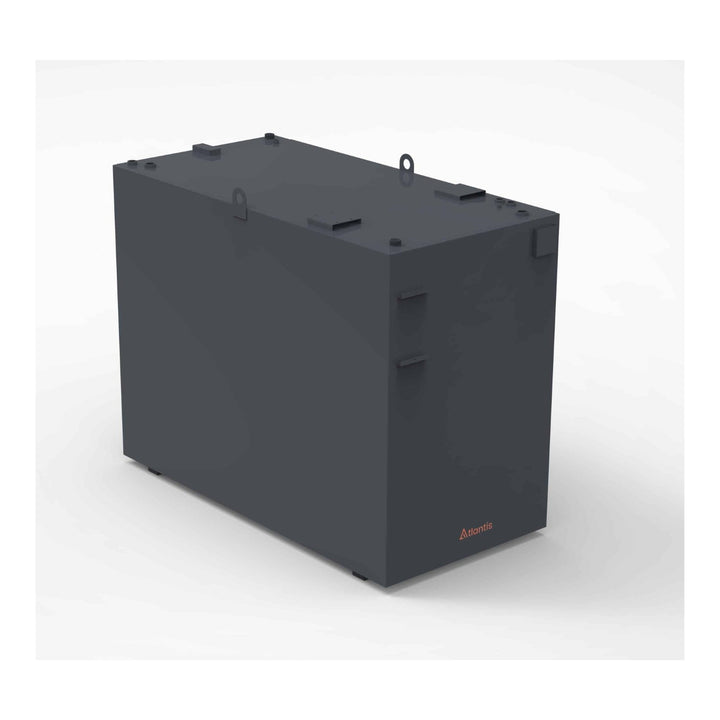

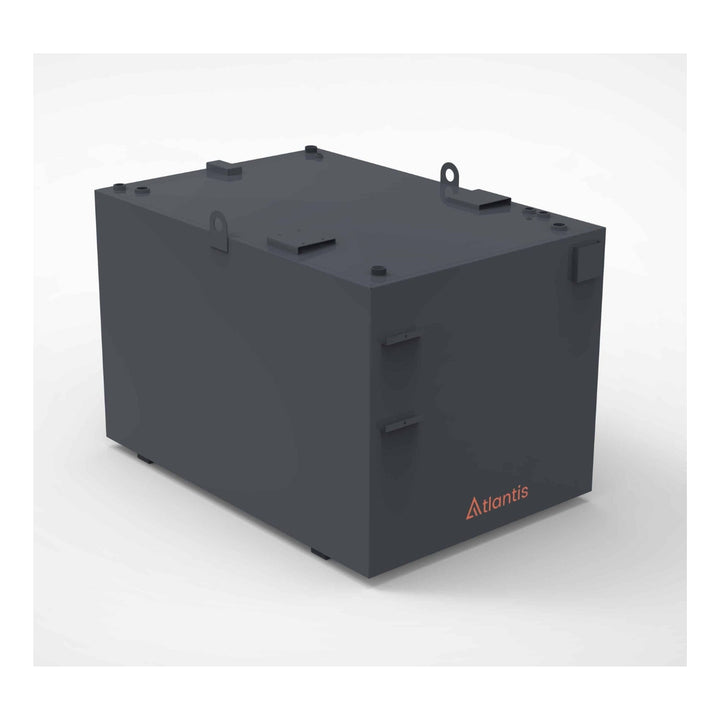

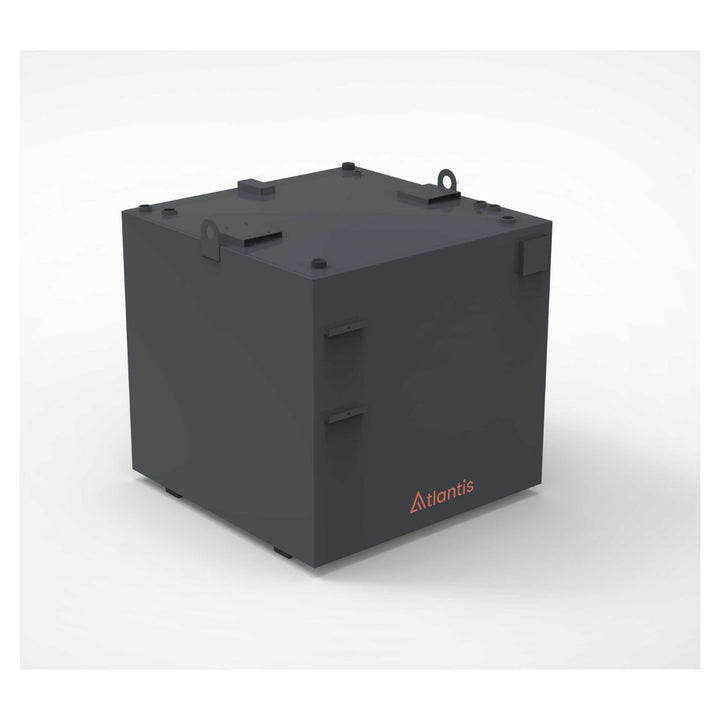

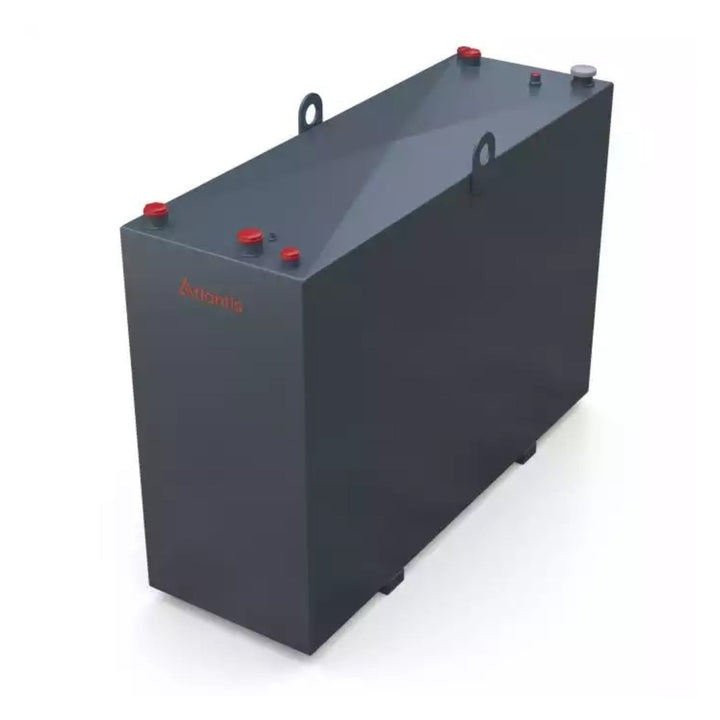

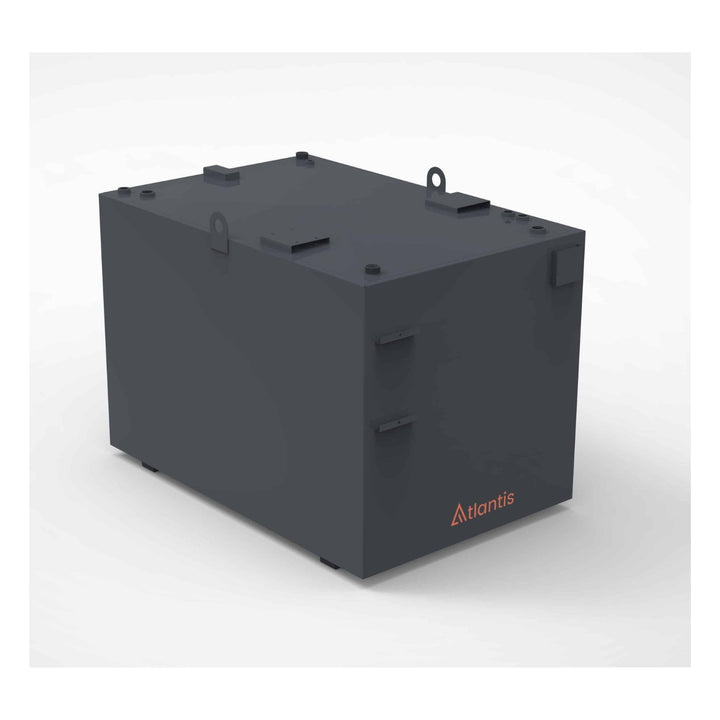

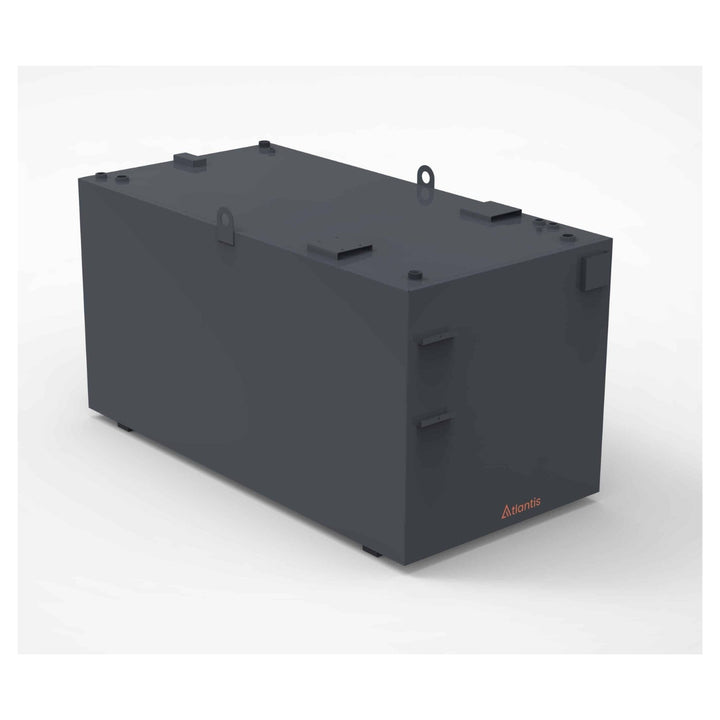

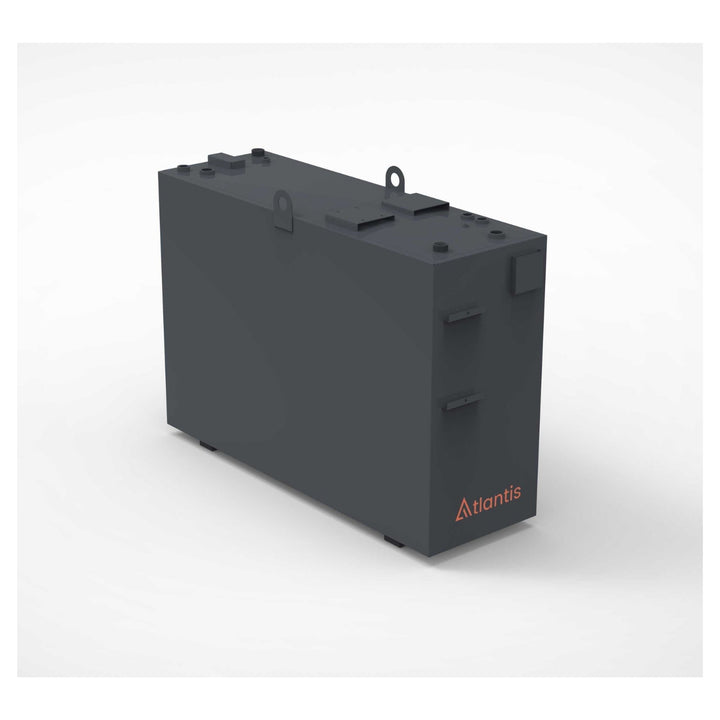

Atlantis Steel Bunded Lube Oil Tanks

A 1050 Litre Steel Bunded Lube Oil Tank which is suitable for commercial applications. The liquid is stored in the primary or inner tank and the outer tank forms the required bund with capacity for 110% of the primary tank’s capacity which makes this tank suitable for both domestic and commercial installations. This tank is suitable for the storage of many oils. A bunded tank is a tank within a tank, the outer tank provides protection for the inner tank which therefore makes it harder for the inner tank to fail.  However, in the unlikely event of the inner tank failing, the outer tank will provide secondary containment. These tanks are manufactured to the highest standards and conform to BS799 pt5. The thickness of the steel used varies with tank size and all tanks are pressure tested before they leave the workshop. Furthermore, these tanks are supplied with one coat primer and one top coat which is normally green in colour as standard. Atlantis recommend, painting your steel tank once a year to achieve the maximum lifespan. This steel tank is a good option if you are wanting to deter any opportunist in oil theft which is very much on the rise currently, especially if the security lid option has been chosen.

Click here for: Steel Bunded Lube Oil Tank Detail Sheet

Dimensions:

• Length: 1830mm
• Width: 610mm
• Height: 1220mm
• Weight: 260Kg

Specifications:

• 1050 Litre (230 Galls) capacity
• 3 No. 2” top sockets (for fill, pump & spare)
• 1 No. 1 1/2 “ top socket (for gauge)
• 1 No. 1 1/2” bund socket (for bund gauge)
• 1 No 2” vent with cowl fitted pump
• 1 No. 1” suction drain socket (plugged)
• 1 No. 10mm return socket
• 1 No. 100mm x 25mm vent/overflow cut out
• Mounted on 100mm x 50mm high channel support bearers
• Small tin of “touch-up” paint for applying when scratches might occur during the installation process.
• Standard Colour: Grey Ral 7015

Warranty:

• 10 Year warranty

Equipment Options:

• 230v Geared Oil Pump Kit 9L/min c/w 15m Hose Reel & Hose, Nozzle, Meter, Drip Tray
• 3:1 Air Operated Pump Kit, c/w Air Regulator, 15m Hose Reel & Hose, Nozzle, Meter, Drip Tray
• 5:1 Air Operated Pump Kit, c/w Air Regulator, 15m Hose Reel & Hose, Nozzle, Meter, Drip Tray

Compliance:

This tank complies with: Oil Pollution Prevention Guidelines (England & Wales) 2002 PPG2 and BS799 pt5.
