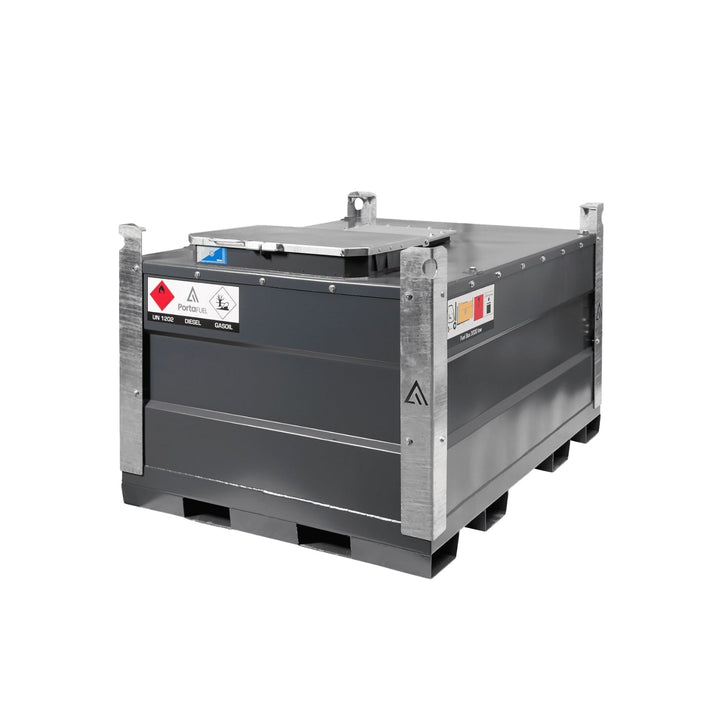

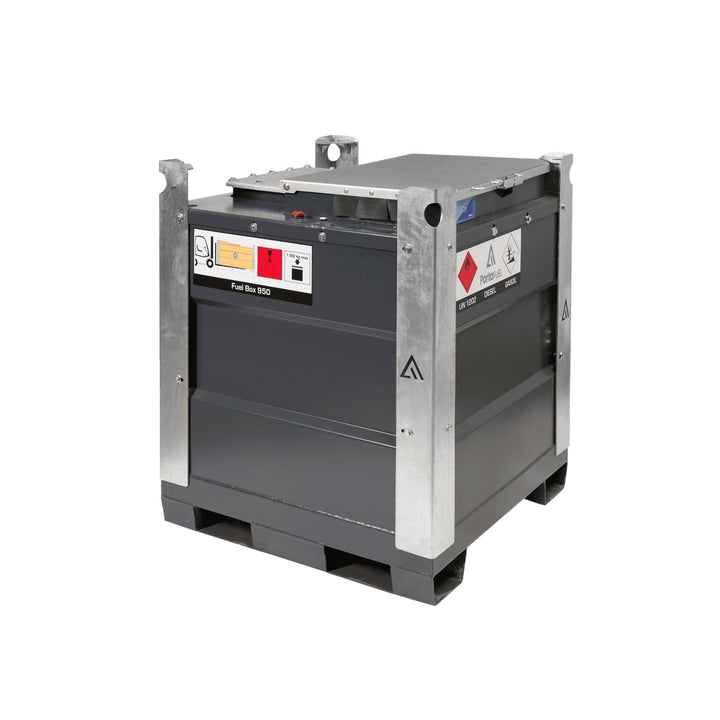

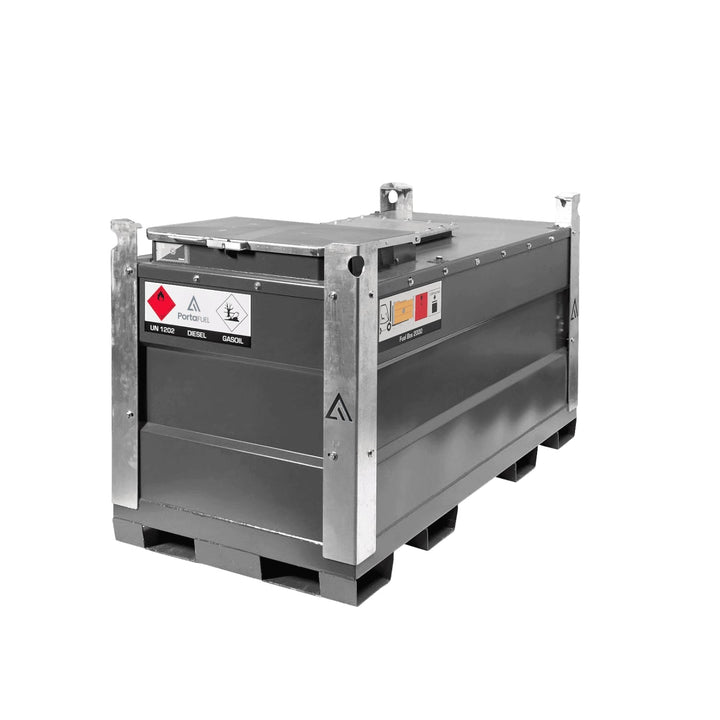

Atlantis Steel Bunded Diesel PortaTanks

This 900 litre Steel Bunded Diesel PortaTank is a very robust tank made from 3mm steel. It is suitable for the transportation of diesel and certain other oils. Ideal for use with plant, generators or for refuelling machinery.

Click here for: Steel Bunded Diesel PortaTank Detail Sheet

Click here to watch video : Atlantis Steel Bunded Diesel PortaTank

Dimensions:

• Length: 1500mm
• Width: 1180mm
• Height: 1285mm

Weight:

• Approx. 560Kg (Empty)
• Approx. 1310kg (Full)

Specifications:

• Capacity: 900 Litres
• 110% bunded (steel in steel) to ensure compliance with (PPG2)
• Gas sprung lockable lid
• Tank Colour: Grey
• Lid Colour: Orange
• Lacquering: C3 A 3.11
• Inner baffles for liquid stabilisation whilst in transit
• Removable top, for access to inner tank manway and cleaning
• The inner tank has manway access for cleaning
• 4-way forklift pockets
• Easily securable with strapping hooks
• Welded lifting eyes for lifting when full
• ADR, UN & CE Approved (certificates with the tank)
• Mesh grid on floor area, to prevent fuel residue on the hose
• Earth point on the tank

Fittings:

• 3″ fill point
• Vent
• Overfill sensor
• Contents gauge
• Lever ball valve for refuelling
• 1 x 1″ suction port for a pump with van, suction tube, non-return valve and strainer
• 3 x 3/4″ suction ports for plant/generator with a suction tube, non-return valve and strainer
• 3 x 1/2″ return ports for plant/generator

Equipment Options:

• Digital flow meter

Warranty:

• 1-Year pump warranty
• 5-Year tank warranty (each tank is provided with a warranty manual)

Compliance:

Complete with ADR & UN Approval, fulfilling the requirements of the European Agreement concerning the international carriage of dangerous goods by road, dated 01 January 2005 (ADR 2005).
